    • Hamilton CH Champion Casters

    Capacity Range: 1600 - 4000 lbs.

    Driven by popular design, the Hamilton Champion Series Caster mounting plate, bolt hole, and overall height specifications were developed to meet industry demand. These casters and wheels come with integrally forged kingpins, precision-tapered thrust bearings, and a guarantee for life. All of these elements make them far superior to the double-ball race casters in their class.

    Quality, Features, & Specifications

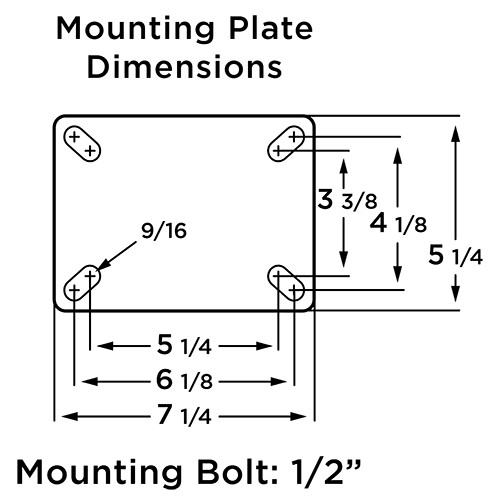

    • Their swivel construction includes a 3/8" thick drop-forged steel mounting plate and
    • 3/8" x 3" precision laser-cut steel legs welded inside and out to the forged-steel horn base.
    • The integrally forged kingpin comes in a 1" diameter. The mounting plate is guaranteed for life and threaded for a 1" diameter locknut.
    • The main load bearing has a CNC-machined 3 ¾" diameter raceway with hardened and polished steel balls.
    • The secondary load bearing is a 1" precision tapered thrust bearing, which counteracts radial thrust.
    • Each unit comes with a powder coat finish. The caster rigs are powder-coated with Hamilton’s new Platinum Powder, a metallic HAA polyester. This finish provides a premium look and excellent durability for both interior and exterior environments.
    • The axle is a ¾" diameter hex head with a locknut.
    • The lubrication fittings are a ball-check type with a swivel assembly and in-wheel hubs with tapered or straight roller bearings.



    Hamilton Casters Durability

    Hamilton’s three-year product warranty stands behind each product in the Champion Series (CH).
