LKPA-VSTH 50K

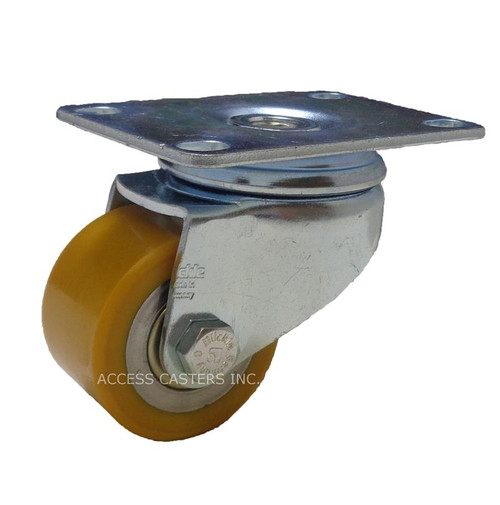

LKPA-VSTH 50K 50mm Blickle Swivel Plate Caster, Extrathane® Wheel

50mm Extrathane wheel, 330 pound capacity
Item Number:
LKPA-VSTH 50K
List Price:
$47.00
Your Price:
$37.72
You Save:
$9.28 (20 %)

Product Description

Low height with high capacity and floor protection

Light duty swivel caster with top plate fitting
Heavy duty wheel with Blickle Extrathane® polyurethane tread with steel wheel center

Bracket:  Made of pressed steel with double ball bearing in the swivel head, ball protection by
the special top plate and ball disc design.  The special Blickle dynamic riveting process of the swivel
head results in minimal swivel head play and smooth rolling characteristics with increased service life.

Wheels:  Made of high-quality, reaction injected polyurethane-elastomer Blickle Extrathane®,
low noise operation, low rolling resistance, good floor preservation, very high abrasion resistance,
high cut and tear propagation resistance, very good chemical connection with the wheel center.
Tread color:  light brown

Wheel diameter:  50mm  (1.97")
Tread Width: 33mm  (1.30")
Overall Height: 73mm  (2.87")
Swivel Lead: 29mm  (1.14")
Tread hardness: 92 Shore A
Plate size: 90mm x 60mm  (3.54" x 2.36")
Bolt hole spacing: 75x45/61x51mm (2.95"x 1.77"/2.40"x 2.01")
