Product Description
4" Swivel Caster with brake
- 4" x 1-1/4" Gray TPR Rubber wheel with ball bearings
- Side-mounted top lock brake
- 300-pound capacity
- 5-1/8" mounting height
- 2-1/2" x 3-5/8" top plate
- 1-3/4" x 2-13/16" to 3" bolt hole pattern
- RoHS-compliant zinc finish
- Full double hardened raceways
- 3/8" hollow axle with lock nut

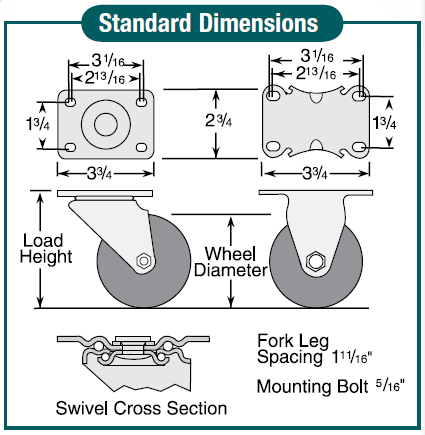

CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel with brake
Wheel Diameter 4"
Tread Width 1-1/4"
Brake No
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-13/16" to 3"
Wheel Material TPR Rubber
Overall Height 5-1/8"
Load Capacity 300 pounds
Finish Zinc
Wheel Bearing Ball Bearing
