Product Description
2.03256.95.BRK1 3-1/2" Colson Swivel Caster with Brake
- 3-1/2" x 1-1/4" HI-TECH polyurethane wheel with ball bearings
- Side-mounted top-lock brake
- 250-pound capacity
- 4-11/16" mounting height
- 2-1/2" x 3-5/8" top plate
- 1-3/4" x 2-13/16" to 3" bolt hole pattern
- RoHS-compliant zinc finish
- Full double-hardened raceways
- 3/8" hollow axle with lock nut
- Lead Time: 1-2 days
Wheel: 2.00003.95

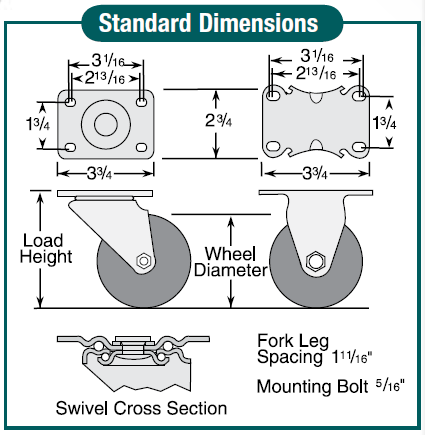

CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel with brake
Wheel Diameter 3-1/2"
Tread Width 1-1/4"
Brake Yes
Mounting Type Top Plate
Mounting Size 2-1/2" x 3-5/8"
Bolt Hole Pattern 1-3/4" x 2-13/16" to 3"
Wheel Material Polyurethane
Overall Height 4-11/16"
Load Capacity 250 pounds
Finish Zinc
Wheel Bearing Ball Bearing
Manufacturer Colson
Lead Time 1-2 Days
