Product Description
|

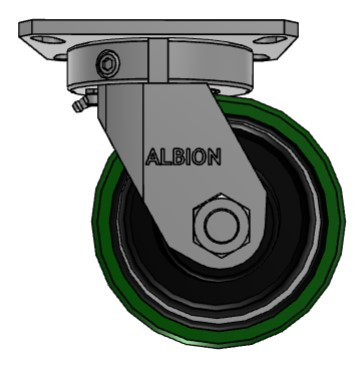

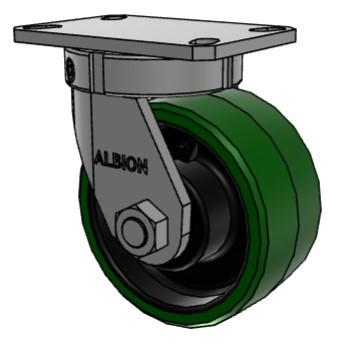

6" x 3" Poly on Cast Iron wheel
Swivel Caster 1" thick Polyurethane (95A) tread on heavy cast iron core
2,450 pound capacity 7-1/2" overall height 4-1/2" x 6-1/4" overall plate size Roller Bearing
5/16" AISI 1045 heat treated steel. Standard lead time is one week.
Used for Conveyor-drawn tow trucks, heavy duty bakery racks, production dollies, heavy duty dough troughs, etc.
Wheel used in this caster: PX0650116
|
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 2-7/16" x 4-15/16"
Wheel Material 1" Thick Polyurethane (95A)
Overall Height 7-1/2"
Load Capacity 2,450 pounds
Finish Zinc
Wheel Bearing Roller Bearing
