Product Description
|
10" x 3" Thick Polyurethane on Cast Iron wheel
1" Thick 95A Polyurethane on heavy cast iron core

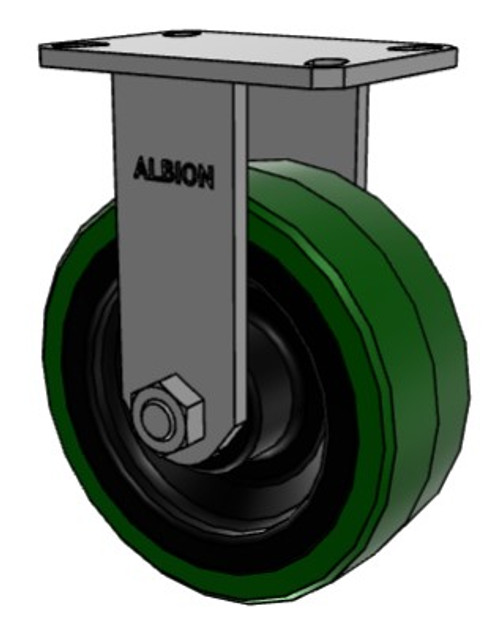

Rigid Caster 3700 pound capacity 11-1/2" overall height 4-1/2" x 6-1/4" overall plate size Roller Bearing
5/16" AISI 1045 heat-treated steel. Normal lead time is 5-7 days
Used for Conveyor-drawn tow trucks, heavy-duty bakery racks, production dollies, heavy-duty dough troughs, etc.
Wheel used in this caster: PX1050116
|
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid Caster
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 2-7/16" x 4-15/16"
Wheel Material 1" Thick 95A Polyurethane
Overall Height 11-1/2"
Load Capacity 3,700 lbs
Finish Zinc
Wheel Bearing Roller Bearing
