Product Description
- Heavy-Duty 8" rigid caster
- 8" x 3" machined nylon wheel with maintenance-free precision ball bearings
- 7200-pound capacity
- 10-1/2" height

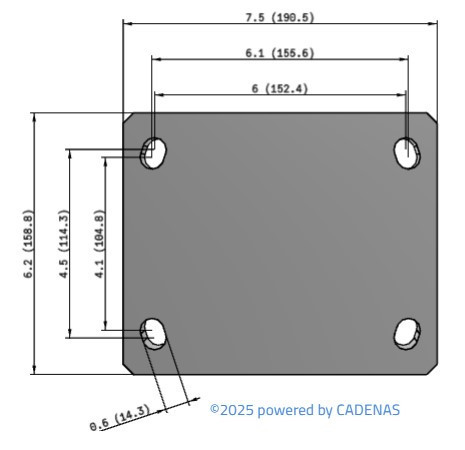

- 6-1/4" x 7-1/2" top plate
- 4-1/2" x 6" slotted to 4-1/8" x 6-1/8" bolt hole pattern for 1/2" mounting bolts
- Top Plate: 1/2" thick AISI 1045 steel machined and through hardened
- 3/4" Axle
- RoHS-compliant zinc plate finish
- 80 Shore D wheel hardness
- Temperature Range(F): -30° to +220°
Highly recommended for automotive and aerospace applications. The 610 Series is built to take the punishment of constant swiveling or for service where shock or impact loads might damage less rugged casters
Typical Applications:
- Body dolly carts
- Engine dollies
- Material Carts
- Chassis rack carts
- Paint line dollies
- Towed trash gondolas
Call 877-881-6814 for wheel brake and swivel lock options.
Product Videos
Custom Field
Caster Type Rigid Caster
Wheel Type Trionix -machined nylon
Wheel Bearings Precision Ball Bearings
Capacity 7,200 pounds
Height 10-1/2"
Top Plate 6-1/4" x 7-1/2"
Bolt Hole Pattern 4-1/2" x 6" slotted to 4-1/8" x 6-1/8"
Finish RoHS Compliant Zinc
Availability 2-3 weeks
Wheel Diameter 8"
Wheel Width 3"
