Product Description

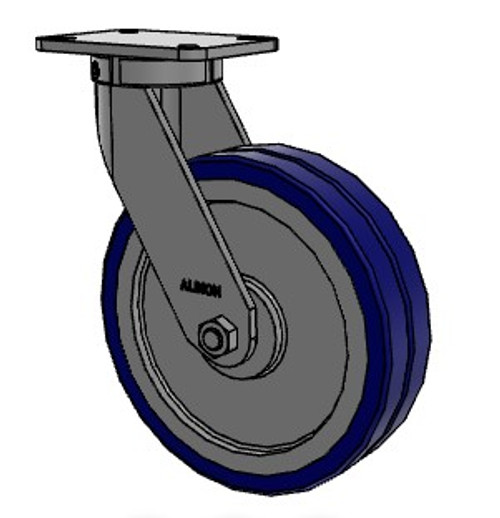

- 12" Kingpinless Swivel Caster
- 5,280-pound capacity
- 12" x 4" polyurethane on heavy cast iron core wheel
- 1" thick 95 Shore A Durometer polyurethane on a cast iron
- Tapered bearings in the wheel
- Swivel Section: 3/4" ball bearings mounted in 4-3/8" precision machined raceway
- 12-1/2" mounting height
- 6-1/4" x 7-1/2" top plate

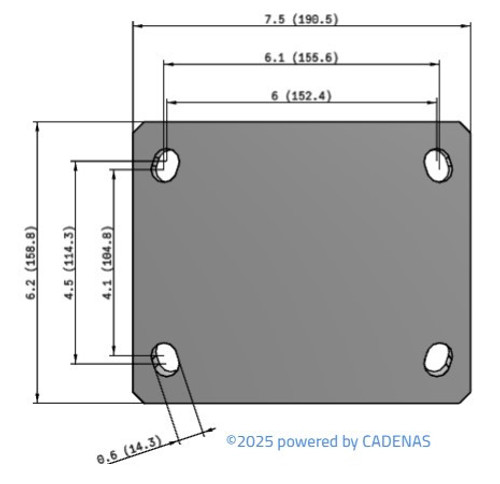

- 4-1/8" x 6-1/8" slotted to 4-1/2" x 6" bolt hole pattern for 1/2" bolts
- 3-5/8" swivel lead
- 3/8" thick legs
- 1/2" thick top plate
- RoHS-compliant zinc finish
- Made in the USA
Typical Applications
- Body dolly carts
- Engine dollies
- Material carts
- Chassis rack carts
- paint line dollies
- Towed trash gondolas
- Die carts
Usually ships in 2 to 3 weeks.
Product Videos
Custom Field
Caster Type Kingpinless Swivel
Wheel Type Thick tread polyurethane on cast iron
Wheel Bearings Tapered
Wheel Diameter 12"
Wheel Width 4"
Capacity 5,280 pounds
Height 15-1/2"
Top Plate 6-1/4" x 7-1/2"
Bolt Hole Pattern 4-1/8" x 6-1/8" slotted to 4" x 6-1/2"
