Product Description
- 6" Swivel Caster
- 6" x 2" gray cast polyurethane elastomer on glass nylon core
- Precision ball bearings in wheel
- 1,500 pound capacity
- 7-1/2" mounting height

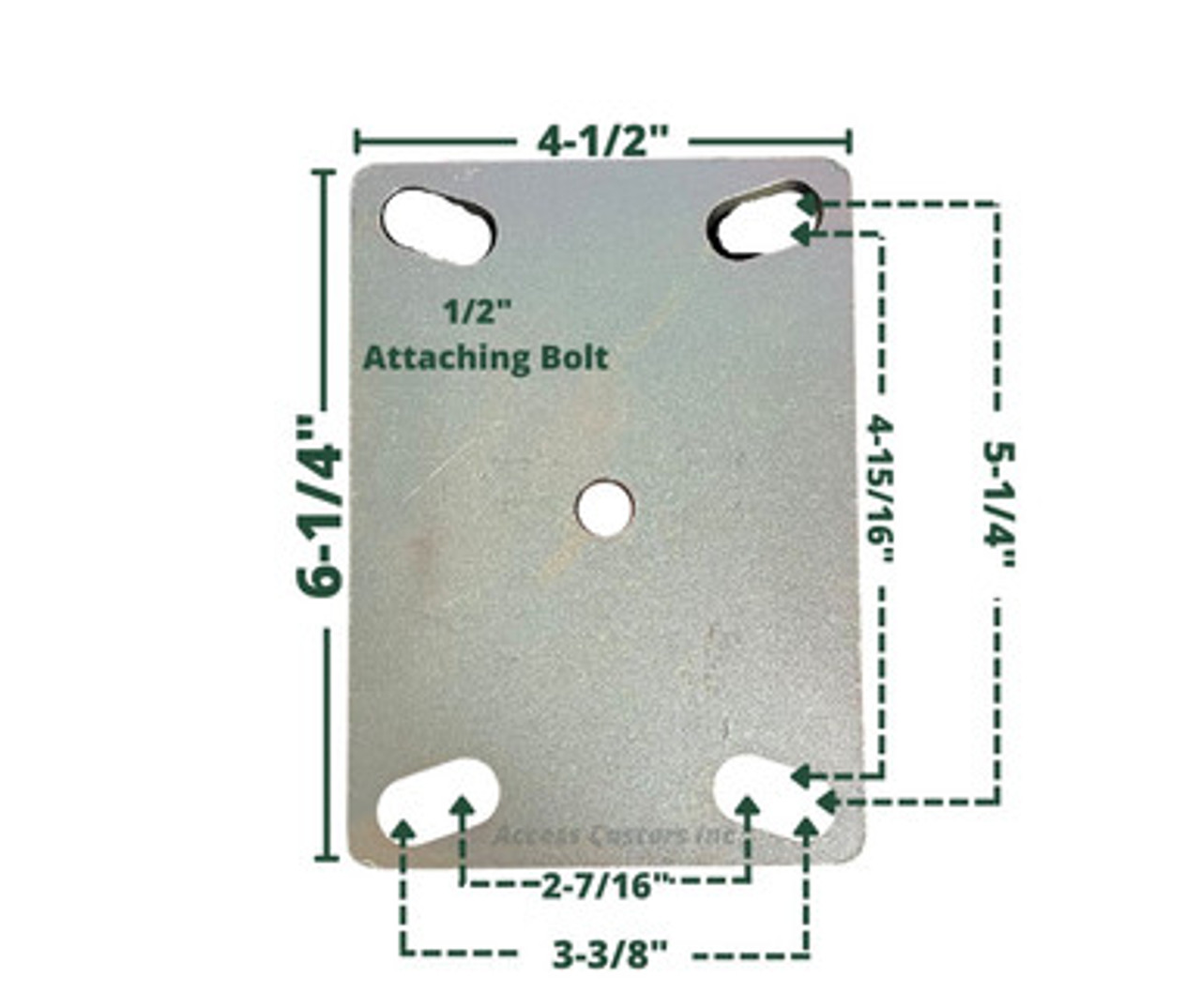

- 4-1/2" x 6-1/4" top plate
- 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt hole pattern
- Zinc plated
- Grease fitting in wheel axle and swivel section
- Wheel durometer: 65 Shore D
- Temperature range: -50°F to 180°F
Super strength solid casted gray polyurethane elastomer mechanically locked with glass filled nylon bearing collar.
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4-1/2" x 6-1/4"
Bolt Hole Pattern 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Wheel Material Polyurethane Elastomer
Overall Height 7-1/2"
Load Capacity 1,500 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearing
