Product Description
90FS10501S Albion 90 Series swivel caster
10" x 3" forged steel wheel with roller bearings
3,500 pound capacity
12-1/2" mounting height

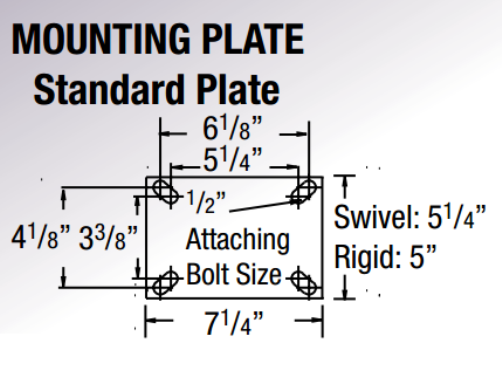

5-1/4" x 7-1/4" top plate
2-1/2" swivel lead
3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
for 1/2" bolts
Zinc plate finish
Drop forged steel wheels are hot forged from carbon steel billets. The forging process improves grain flow, enhanced ductility and tensile strength. Suitable for high capacity, abusive applications. Forged steel is 64,000 psi tensile strength.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Forged Steel
Overall Height 12-1/2"
Load Capacity 3,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
