Product Description

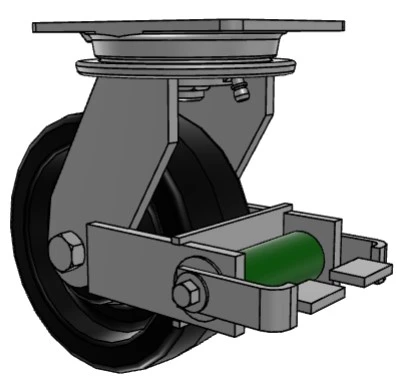

90TM08501SP Albion 8" 90 Series swivel caster with brake
Foot Activated Poly-Cam Brake
Brake is mounted on leading edge of the caster
8" x 3" phenolic wheel with roller bearings
2,500 pound capacity
10-1/2" mounting height
2-1/2" swivel lead
5-1/4" x 7-1/4" top plate
3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
Zinc plate finish
Temperature range: -40°F to 250°F
Product Videos
Custom Field
Caster Type Swivel with Poly Cam Brake
Wheel Diameter 8"
Tread Width 3"
Brake Yes
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Phenolic
Overall Height 10-1/2"
Load Capacity 2,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
