Product Description

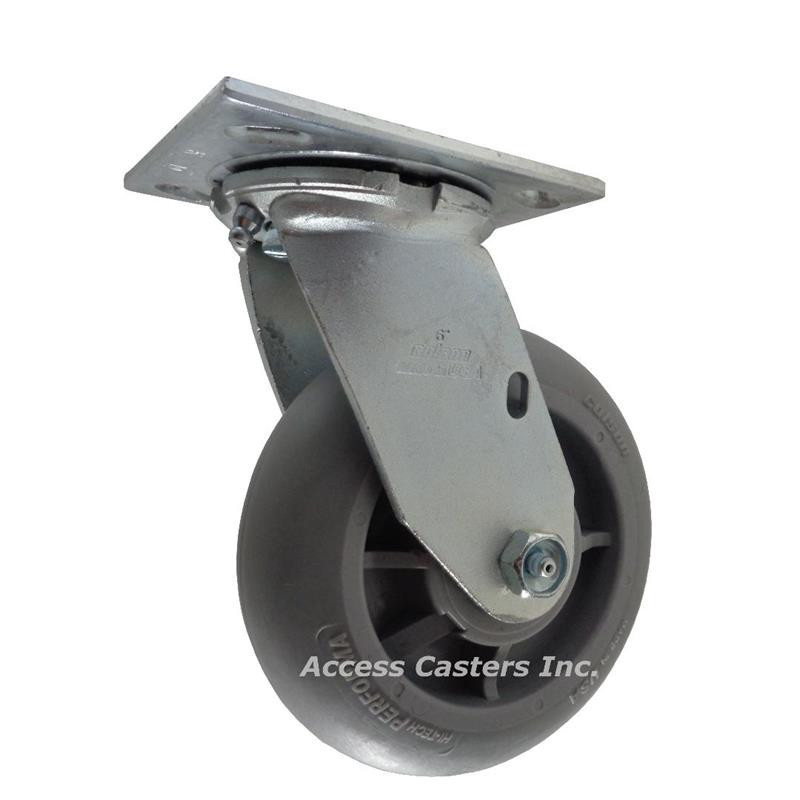

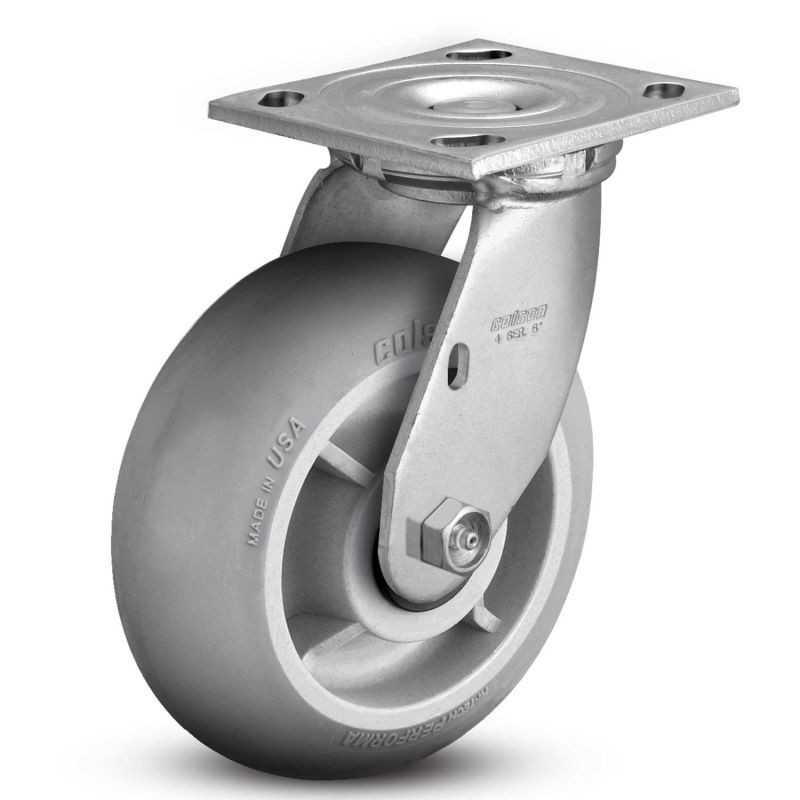

Cambro Heavy-Duty 6" swivel caster
- 6" x 2" Round gray Performa Rubber wheel with roller bearings
- 450-pound capacity
- 7-1/2" mounting height

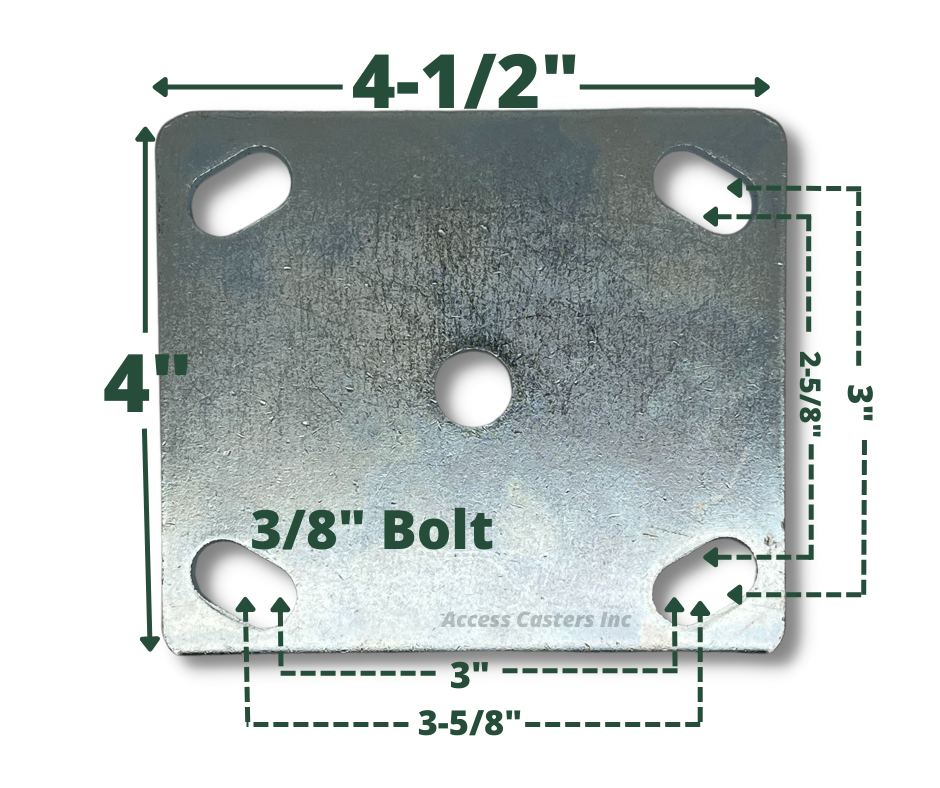

- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole
- 5" swivel radius
- 1/4" thick steel top plate
- Grease fitting in the axle and swivel section
- Full double ball hardened raceways
- USA-made
- Wheel hardness 65 Shore A
- Temperature range: -45°F to 180°F
- RoHS-compliant zinc plate finish
Fits these models:
- KVC854
- KVC854C
- KVC856
- KVC856C
- UPCH1600HD
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Rubber
Overall Height 7-1/2"
Load Capacity 450 pounds
Finish Zinc
Wheel Bearing Roller Bearing
