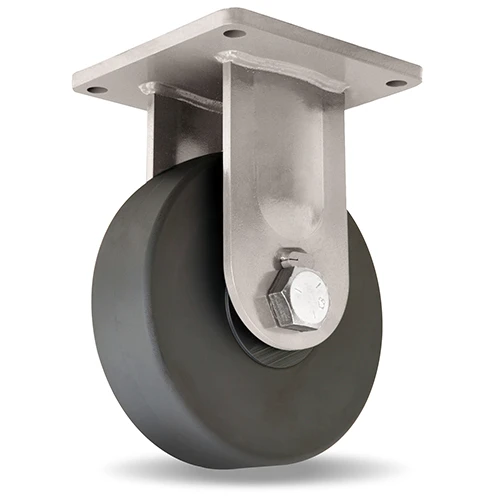

Product Description
- 10" x 4" Nylast® wheel with precision ball bearings
- Machined cast nylon has an 85 Shore D hardness
- 8,200-pound capacity
- 13" mounting height
- 8-1/2" x 8-1/2" top plate
- 7" x 7" bolt hole pattern for 5/8" mounting bolts
- 1-1/4" diameter grade 5 hex head axle
- Made in the USA
- 3-4 week lead time
Featuring Hamilton's HPI Swivel Technology
The HPI Technology outperforms conventional CNC-machined ball raceways, kingpinless, and unit load-bearing swivel constructions. The new design improves the bearings' contact area and more than doubles the number of contact points. The raceways are also 45% harder than conventional hardened raceways, and the surface finish is an incredibly smooth 16 microinches.
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 10"
Tread Width 4"
Brake No
Mounting Type Top Plate
Mounting Size 8-1/2" x 8-1/2"
Bolt Hole Pattern 7" x 7"
Wheel Material Nylon
Overall Height 13"
Load Capacity 8,200 pounds
Finish Zinc
Wheel Bearing Precision Ball Bearing
Lead Time 3-4 weeks
Manufacturer Hamilton
