Product Description
R-MD-1653GB95
Hamilton Maxi-Duty Rigid Caster with 16" x 5" Ultra-Thick (3") DuraGlide Polyurethane (95A) on Cast Iron Center with 1 1/4" Precision Sealed Ball Bearings
- Capacity: 11,500 pounds
- Wheel Type: 3" Thick 95A gray polyurethane on cast iron core
- Wheel Bearings: 1-1/4" ID sealed precision ball bearings
- Mounting Height: 19-1/2"

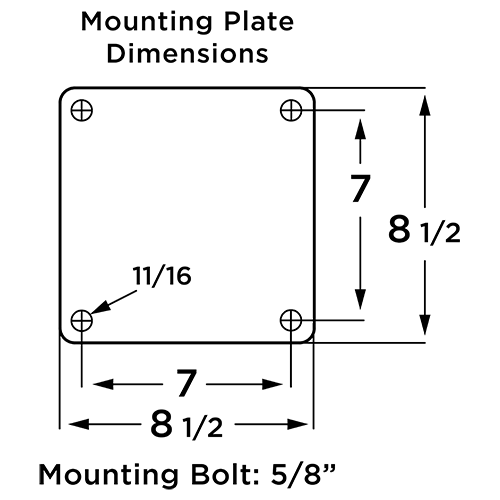

- Top Plate: 8-1/2" x 8-1/2"
- Bolt Hole Pattern: 7" x 7" for 5/8" bolts
- Temperature Range(F): -5° to +180°
- Finish: Platinum Powder Coat
- Unit Weight: 108 pounds
- Lead Time: 4-5 weeks
Move over 10 tons on Hamilton’s top-of-the-line Maxi-Duty Casters, designed and built for the toughest applications including shipbuilding, manufactured housing, automotive and aerospace. Long life and dependable service are assured now more than ever with Hamilton's HPI™ Swivel Technology. The technology is a significant upgrade from conventional ball raceways or unit load bearings and provides an even stronger platform to support Hamilton’s three year product warranty.
About DuraGlide Wheels

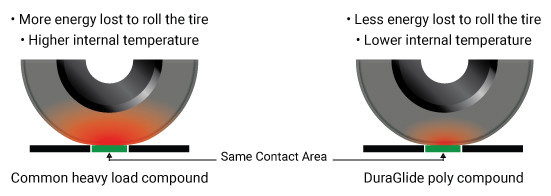

For extra heavy loads requiring excellent rollability, higher speeds, and/or outdoor use, Hamilton’s new DuraGlide® and Super DuraGlide® are an excellent choice. 1”- 3” thick 95A tread offerings of dynamically responsive polyurethane that rolls up to 40% easier than most other poly wheels. Engineers also formulated DuraGlide® to run much cooler than most polyurethanes resulting in an excellent wheel for higher speed applications.
DuraGlide is also essentially impervious to moisture and our top poly performer in moist or outdoor applications. Thicker tread also reduces heat stress on the bond line. And because there’s more polyurethane to compress, the psi pressure is lower and therefore the urethane endures less stress fatigue for longer life. DuraGlide® is medium gray poly molded to heavy duty black cast iron or forged steel centers.
