Product Description

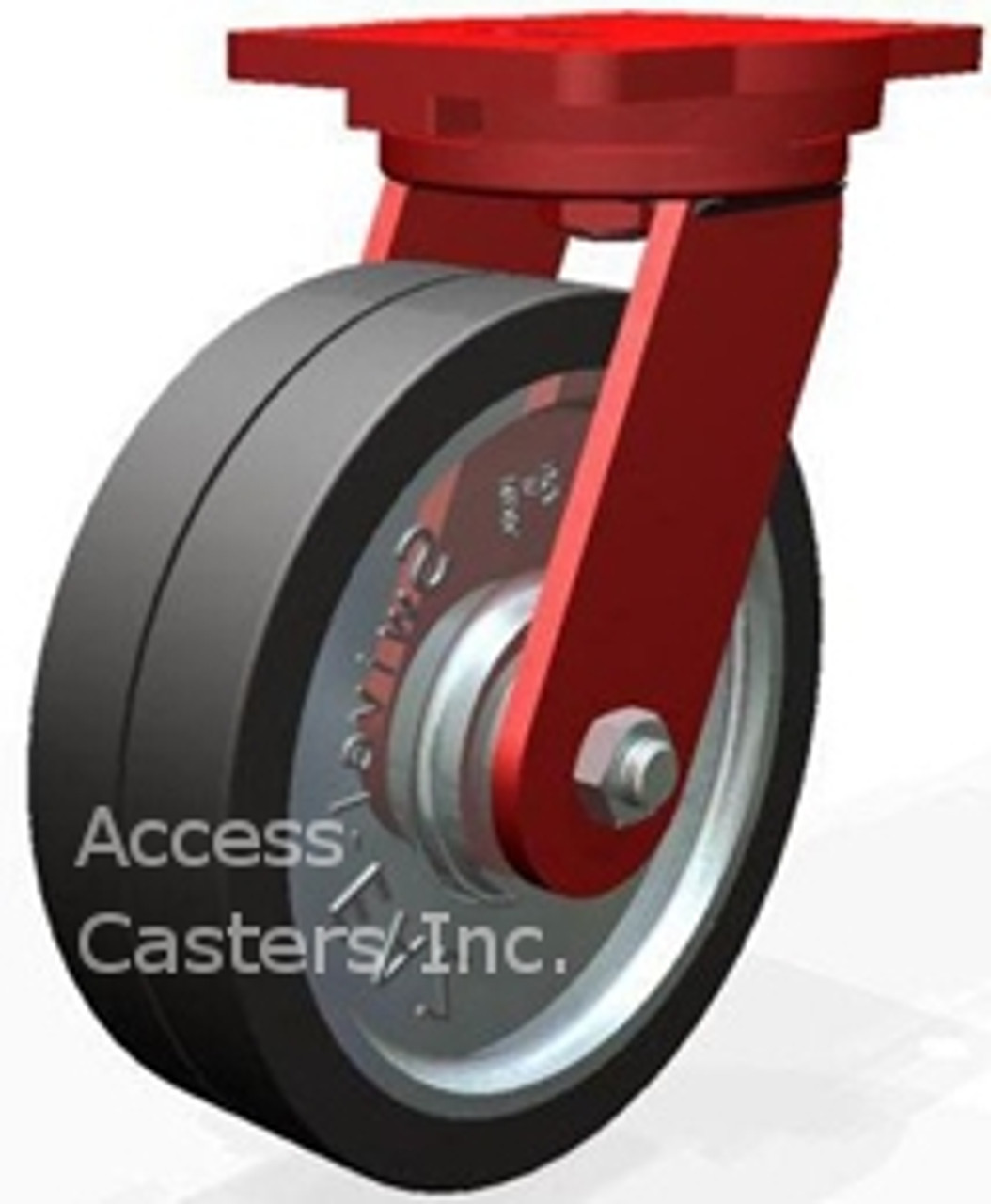

Hamilton EHD Caster.
Wheel: 10" x 3" UltraGlide XC wheel with precision ball bearings
Capacity: 5,900 pounds
Height: 12-1/2"
Top Plate: 6-1/8" x 7-1/2"
Bolt Holes: 4-1/8" x 6-1/8" for 1/2" mounting bolts
Swivel Offset: 2-1/2"
Options: Brake, 4-position swivel lock
Finish: Red Enamel
Swivel Construction: 1/2" thick drop forged steel mounting plate, 3/8" x 3" plate steel legs welded inside and out to forged steel horn base
Kingpin: 1" diameter integrally forged with mounting plate guaranteed for life and threaded for 1" diameter lock nut

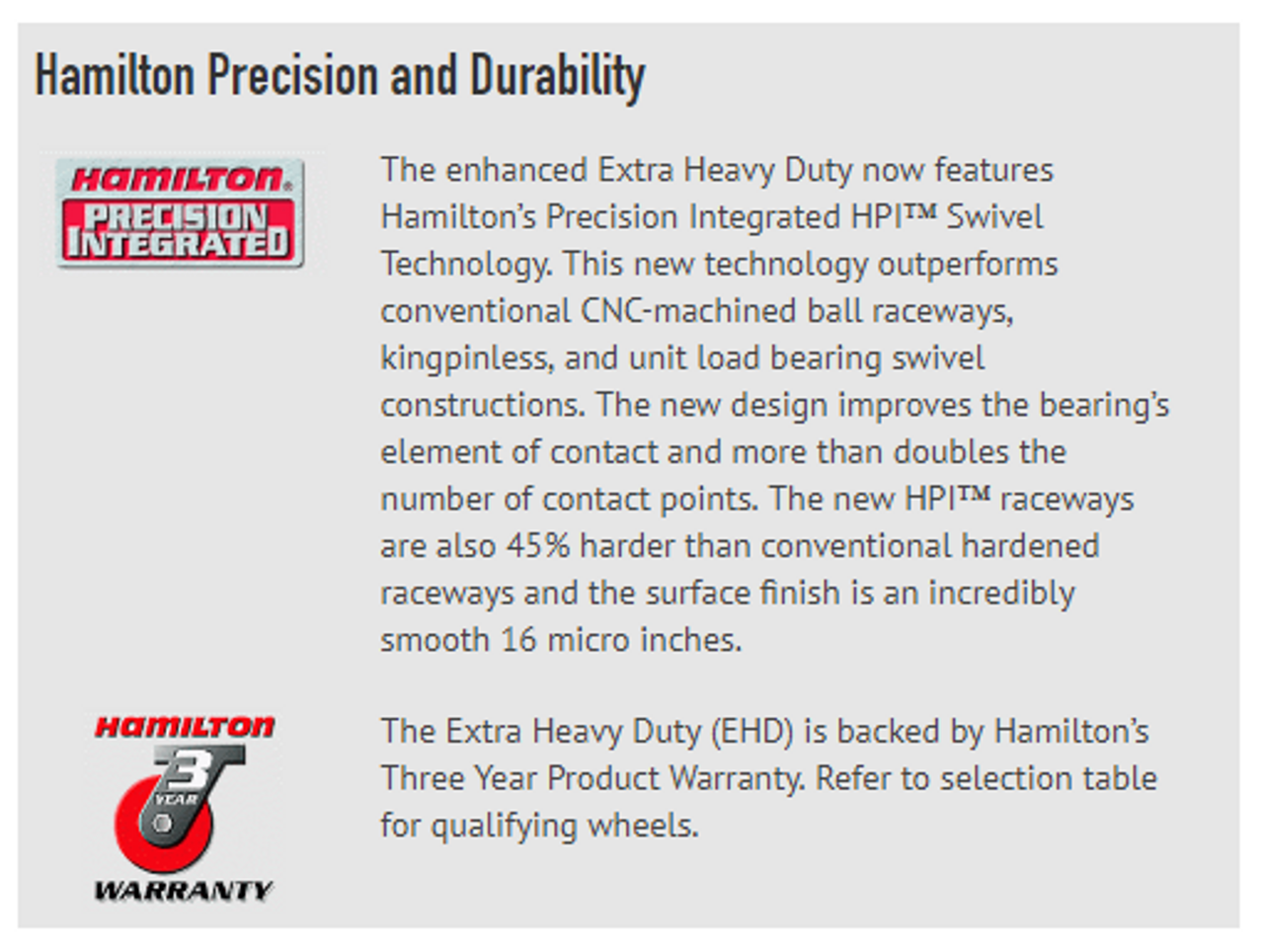

Swivel Section: HPI™ thrust bearings, and 1" precision tapered thrust bearing
Axle: 3/4" diameter hex head with lock nut
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 10"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 6-1/8" x 7-1/2"
Bolt Hole Pattern 4-1/8" x 6-1/8"
Wheel Material Polyurethane
Overall Height 12-1/8"
Load Capacity 5,900 lbs
Finish Red Enamel
Wheel Bearing Roller Bearing
