Product Description
Hamilton EHD Swivel Caster
Wheel: 8" x 3" Superlast on forged steel core with tapered bearings
Capacity: 3,500 pounds
Height: 10-1/2"
Top Plate: 6-1/8" x 7-1/2"
Bolt Holes: 4-1/8" x 6-1/8" for 1/2" mounting bolts
Swivel Offset: 2-1/2"
Options: Brake, 4-position swivel lock
Finish: Red enamel

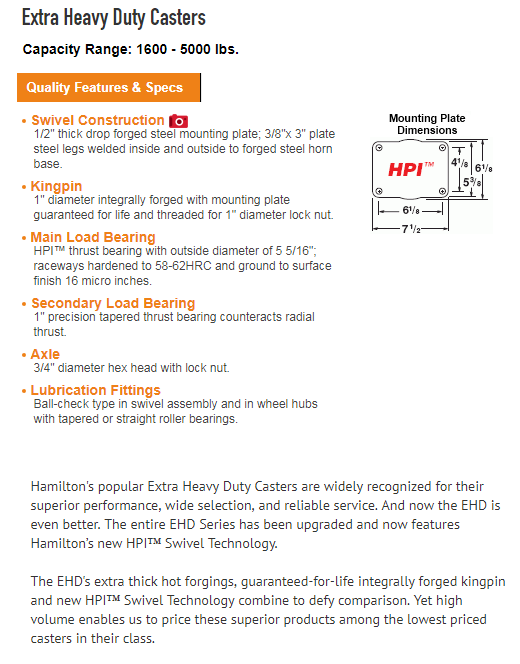

Swivel Construction: 1/2" thick drop forged steel mounting plate, 3/8" x 3" plate steel legs welded inside and out to forged steel horn base
Kingpin: 1" diameter integrally forged with a mounting plate guaranteed for life and threaded for a 1" diameter lock nut
Swivel Section: HPI™ thrust bearings, and 1" precision tapered thrust bearing
Axle: 3/4" diameter hex head with lock nut
Lead Time: Ships in 24 to 48 hours
About Superlast Wheels
For extra-tough jobs requiring protective polyurethane treads, Hamilton manufactures these top-of-the-line Superlast® Wheels. The extra-thick (1") blue treads (hardness of 90-95 Shore A) are liquid cast and chemically bonded to solid-web, drop forged steel centers.
This wheel is exceptionally well-suited for demanding applications, with the highest tensile strength of any of our polyurethane offerings. Its unparalleled durability is further enhanced by the inclusion of a forged steel center, rendering this high-capacity wheel virtually indestructible.
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 8"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 6-1/8" x 7-1/2"
Bolt Hole Pattern 4-1/8" x 6-1/8"
Wheel Material 1" Thick Superlast Polyurethane
Overall Height 10-1/2"
Load Capacity 3,500 lbs
Finish Red Powder Coat
Wheel Bearing Tapered Bearings
