Product Description

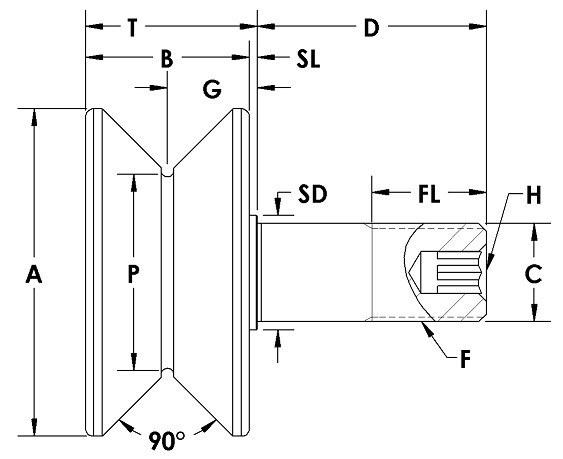

Roller Dia. (A) 3.50" Roller Diameter 3.500 in
Roller Width (B) 1.630 in
Stud Dia. (C) 0.875 in
Stud Length (D) 2.000 in
Point Diameter (P) 2.250 in
Groove Center (G) .0.880 in
Hex Size (H) 0.313 in
Shoulder Diameter (SD) 1.000 in
Shoulder Length (SL) 0.060 in
Total Width (T) 1.690 in
Thread Length (FL) 1.125 in
1.690" Face Width
0.875 stud diameter
7/8"-14 x 2" mounting stud
1.125" thread length
5/16" hex size
Dynamic load rating: 4,920 lbf
Static load rating: 2,950 lbf
Axial dynamic load rating: 2,460 lbf
Axial static load rating: 1,480 lbf
Stud capacity: 5,370 lbs
Retaining ring capacity: 1,340 pounds
Max. clamping torque: 650 in-lb
Bearing Type: Deep groove ball bearings
Seal type: Rubber lip
Ship in 1 to 2 days.
Made in the USA.
Compare to McGill VCF-3-1/2
Compare to Osborn VLR-3-1/2
