Product Description
|
12" x 3" Phenolic wheel

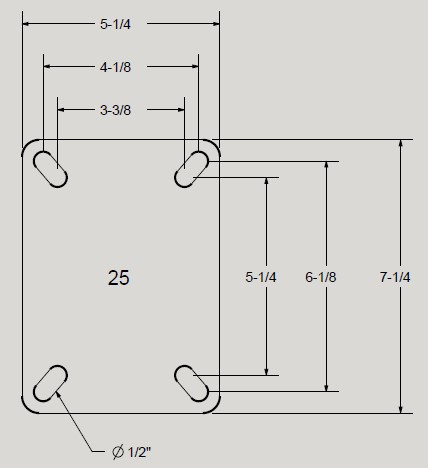

Swivel Caster 3500 pound capacity 15 1/2" overall height 5 1/4" x 7 1/4" overall plate size 3 3/8 x 5 1/4 to 4 1/8 x 6 1/8 Hole Spacing
3/4" nut and bolt king pin
Roller Bearing
Drop Forged Steel Construction Optional Face Contact Brake
Wheel used in this caster: 12PPH1230
Used for Die Tables, Gantries, Machinery Dollies, Steel Box Dollies, Mobile Home Dollies, Automotive etc.
|
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 12"
Tread Width 3"
Brake No
Mounting Type Top Plate
Mounting Size 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Wheel Material Phenolic
Overall Height 15-1/2"
Load Capacity 3,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
