Product Description

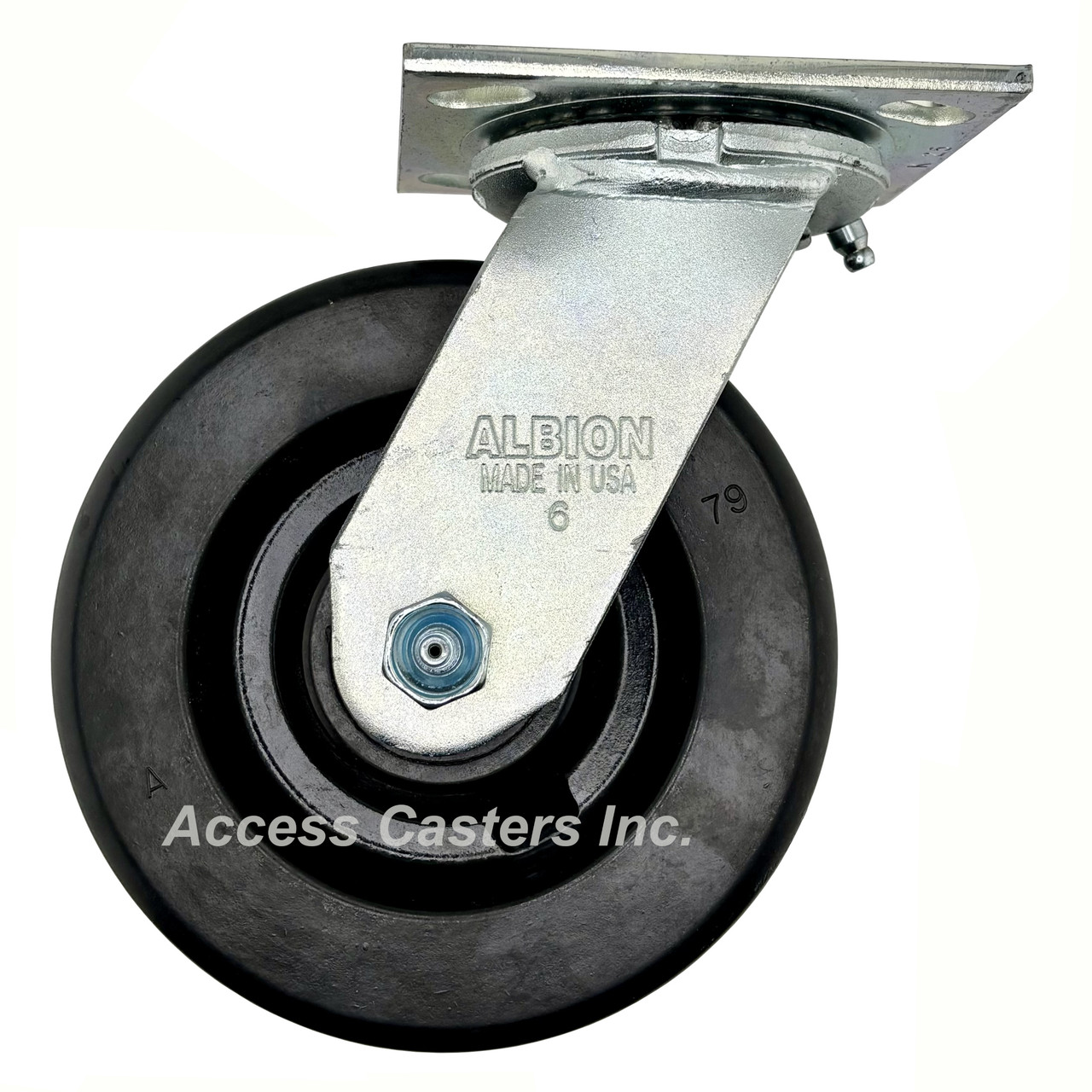

- Albion 16 Series swivel caster with phenolic wheel
- Roller Bearings in wheel
- 4" x 4-1/2" top plates
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
- 6" x 2" phenolic wheel
- 1,200 pound capacity
- 7-1/4" mounting height
- Rohs compliant zinc plate finish
- NSF listed for food service industry
- In-stock for immediate availability
Phenolic wheels are molded of heavy macerated or chopped cotton denim, impregnated with phenolic resin and formed in close fitting molds under high pressure and temperature. They are non-marking, economical, and excellent load carriers.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Phenolic
Overall Height 7-1/4"
Load Capacity 1,200 lbs
Finish Zinc
Wheel Bearing Roller Bearing
