Product Description

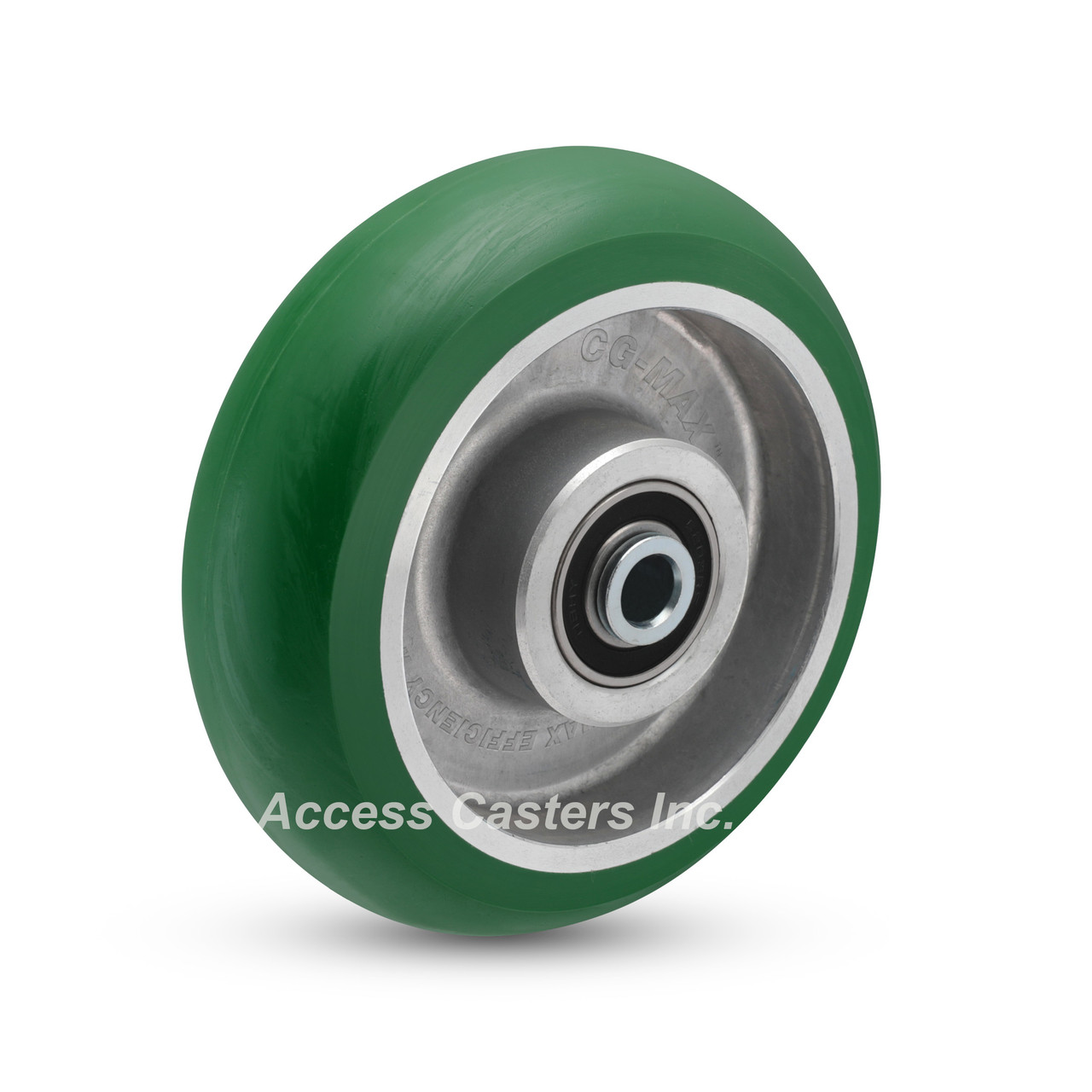

Albion 170PM06228S
6" kingpinless swivel caster
6" x 2" round tread green polyurethane on aluminum wheel
Ergonomic 95 Shore A polyurethane
6203 precision ball bearings in the wheel
1250-pound capacity
7-1/2" mounting height
4" x 4-1/2" top plate
3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
Zinc plate finish
Temperature range: -40°F to 180°F
One-year standard warranty
Wheel information
Designed for ergonomic applications. Wheels feature a chemical and mechanical lock of the tread to the core. High-capacity polyurethane protects floors, is non-marking, and delivers quieter operation than standard metal wheels
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Green 95A Polyurethane
Overall Height 7-1/2"
Load Capacity 1,250 lbs
Finish Zinc
Wheel Bearing Precision Ball Bearings
