Product Description

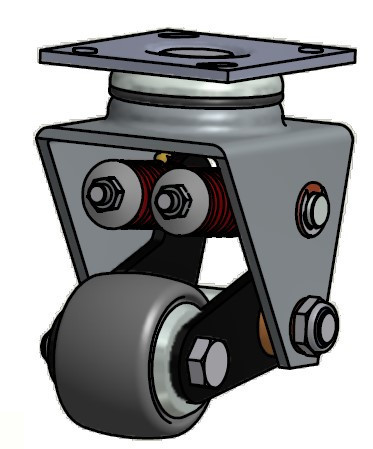

- Darcor Spring-Loaded Caster with 3" Wheel

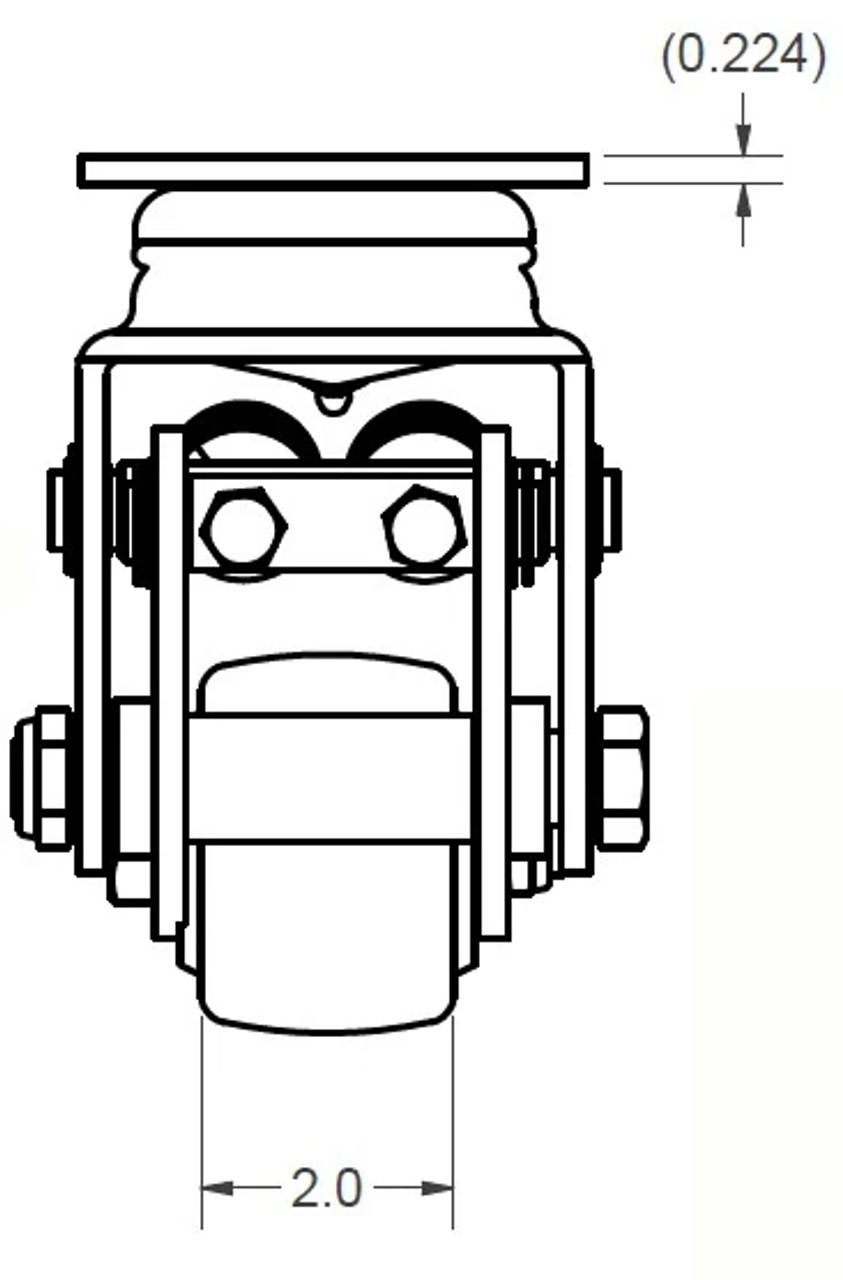

- 3" x 2" gray solid elastomer wheel with precision bearings
- 900-pound capacity
- Loaded Height: 7"
- Max Load Height: 6"
- Swivel Radius: 3-1/2"
- Oil impregnated lubricated bearings for all moving parts
- Sealed precision ball bearings win the wheels
- Sealed swivel assembly with grease fitting for ease of access

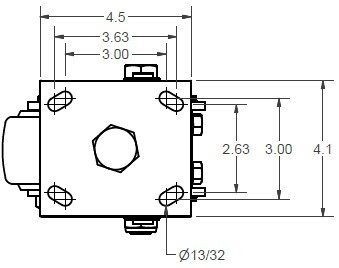

- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
Price discount of 10% begins at 3 pieces.
Product Videos
Custom Field
Caster Type Spring Loaded Swivel Caster
Wheel Type Darcor SE Solid Elastomer
Wheel Diameter 3"
Wheel Width 2"
Wheel Bearings Sealed Precision Ball Bearings
Height 7" Unloaded
Capacity 900 pounds
Top Plate 4" x 4-1/2"
Bolt Holes 3" x 3" slotted to 2-5/8" x 3-5/8"
