Product Description

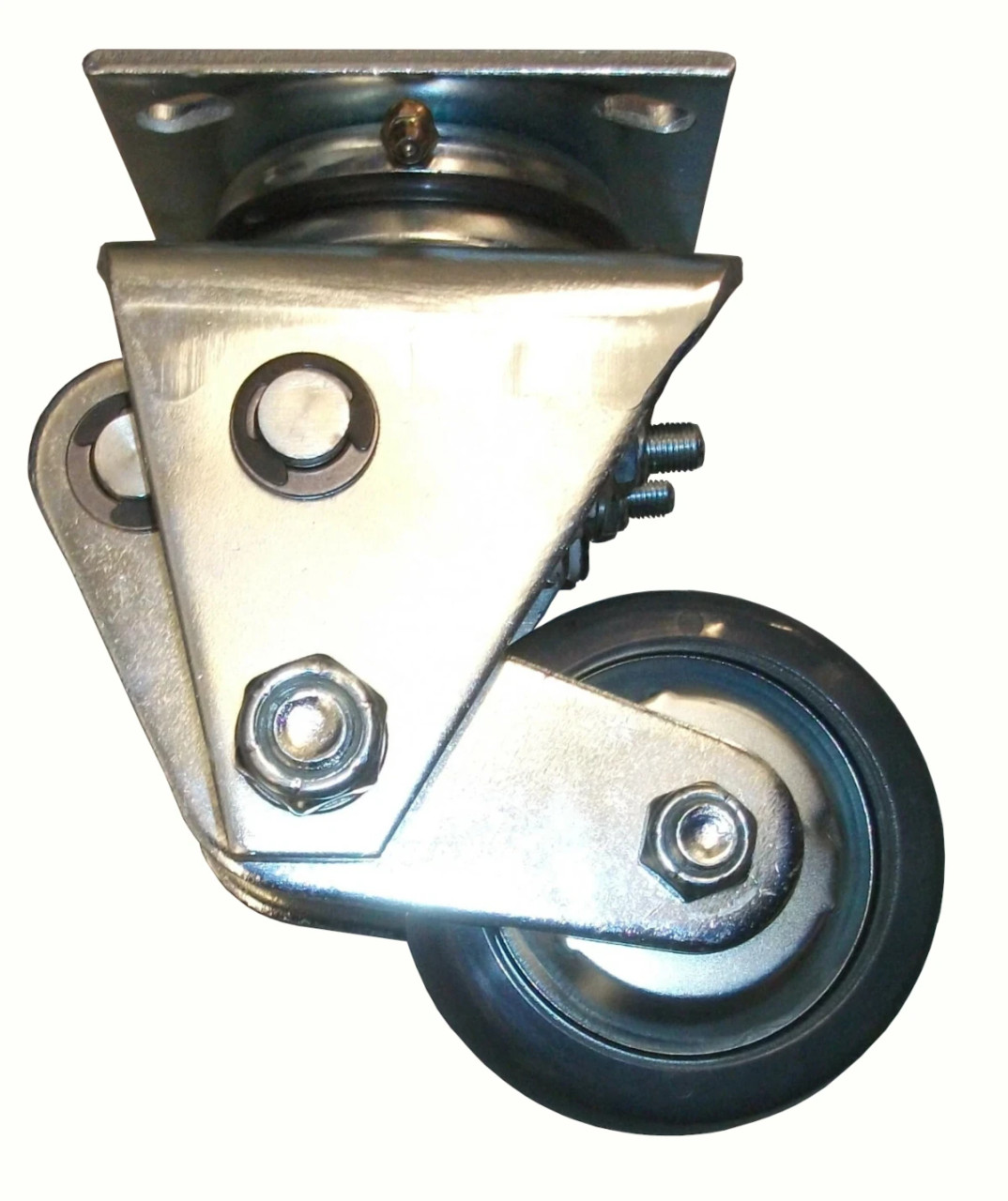

- Darcor Spring Loaded Caster with 4" Wheel
- 4" x 2" gray solid elastomer wheel with precision bearings
- 900 pound capacity

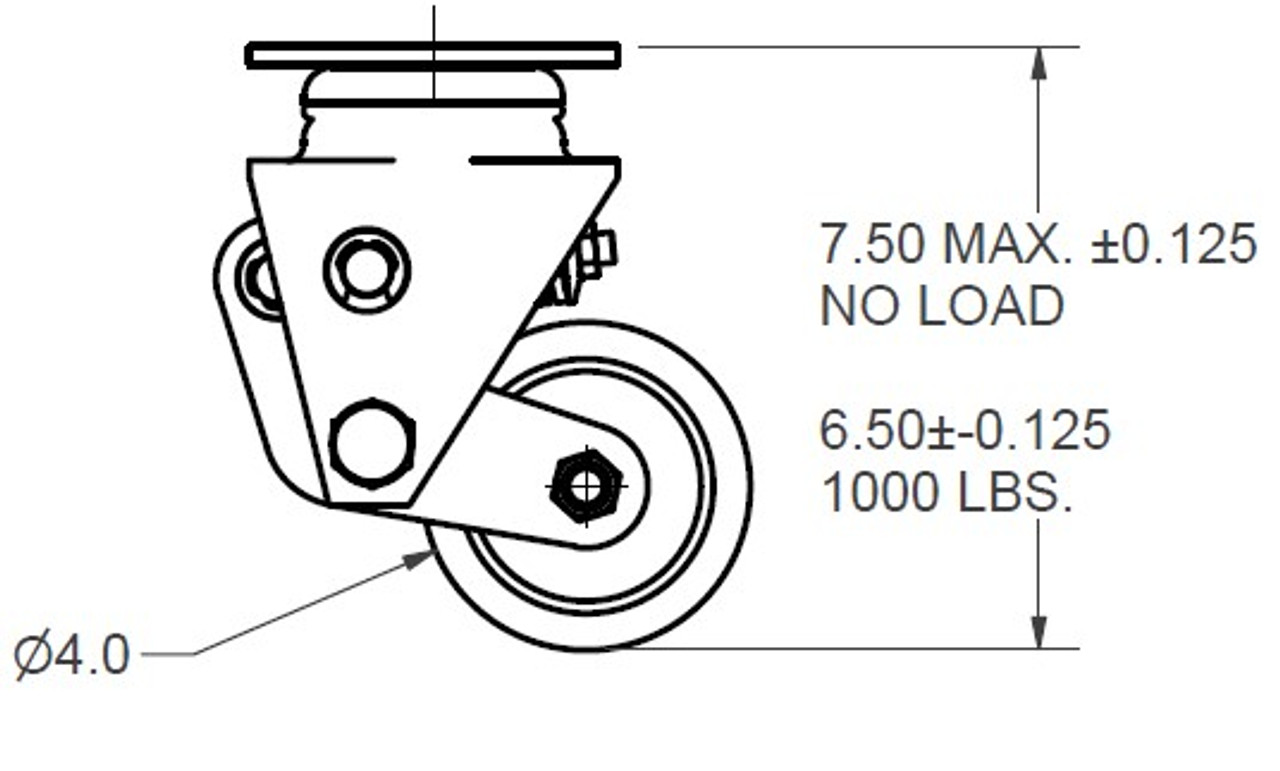

- Loaded Height: 7-1/2"
- Max Load Height: 6-1/2"
- Swivel Radius: 4"
- Oil impregnated lubricated bearings for all moving parts
- Sealed precision ball bearings win the wheels
- Sealed swivel assembly with grease fitting for ease of access
- 4" x 4-1/2" top plate
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
Product Videos
Custom Field
Caster Type Swivel
Wheel Type Darcor SE Solid Elastomer
Wheel Diameter 4"
Wheel Width 2"
Wheel Bearings Sealed Precision Ball Bearings
Height 7-1/2" Unloaded
Capacity 900 pounds
Top Plate 4" x 4-1/2"
Bolt Holes 3" x 3" slotted to 2-5/8" x 3-5/8"
