Product Description

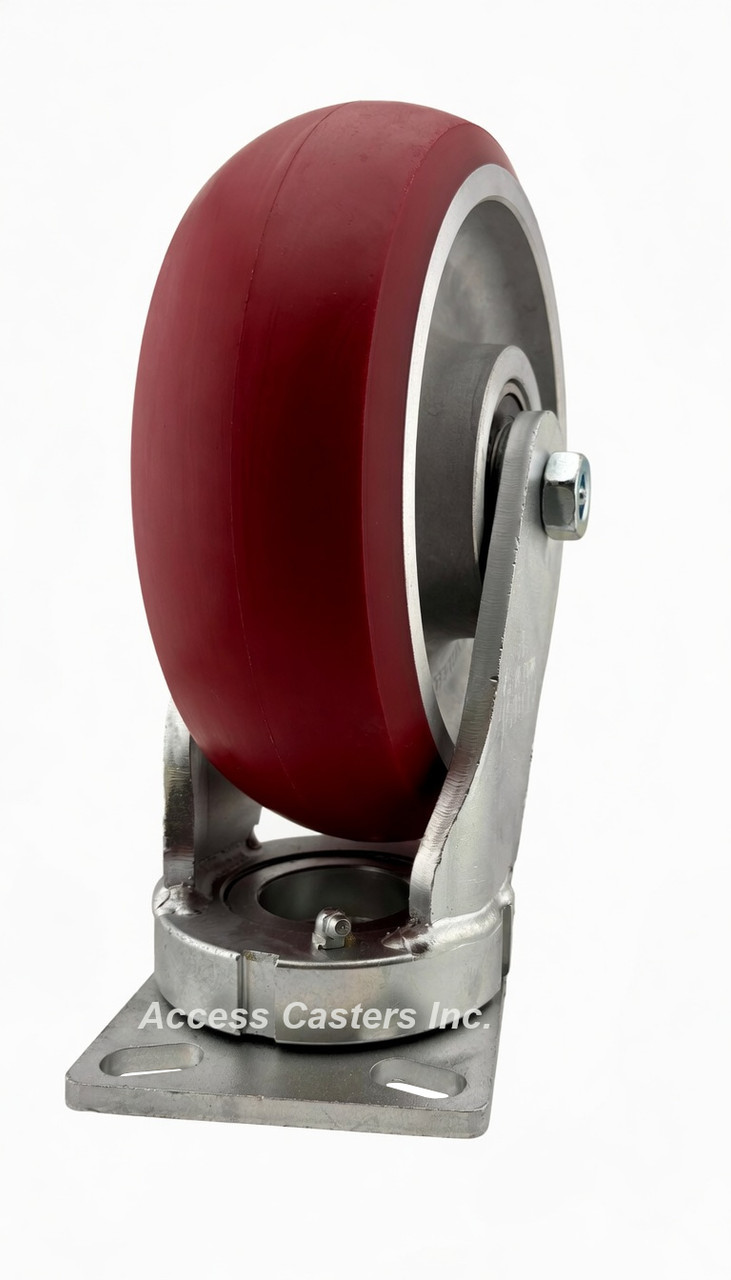

- Albion 8" Heavy-Duty Kingpinless Swivel Caster
- 8" x 3" CG-APEX Round Tread Polyurethane on Aluminum Wheel
- Large Precision Sealed Ball Bearings with Top Hat Spacers
- 2,500-pound capacity
- Red Dynamic 85A Polyurethane Tread
- 10-1/8" Mounting Height
- 4-1/2" x 6-1/4" Top Plate
- 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" Bolt Hole Pattern
- Bolt Holes accommodate 1/2" mounting bolts
- Top Plate: 5/16" AISI 1045 heat-treated steel welded inside and out for longer life
- Legs: 3/8" thick, welded inside and out
- Axle: 3/4" diameter
- RoHS Zinc plate finish
- USA Made

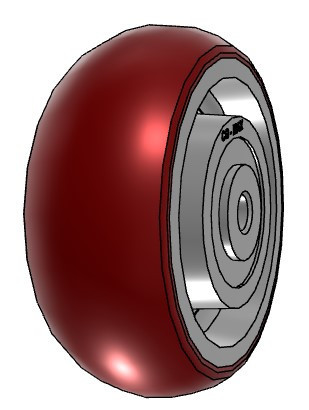

Wheel Information
Meet the newest CG-MAX wheel, built to move more with less effort. Designed for heavy loads, it delivers smooth, controlled performance over debris, reduces noise, and protects flooring. Confident grip and toughness make it ideal for both manual and towline operations.
At its core, advanced polyurethane technology absorbs weight over time, maintaining performance under continuous load. The result is a heavy-duty solution that's as versatile as it is dependable, built to handle demanding environments without compromise.
Product Videos
Custom Field
Caster Type Kingpinless Swivel
Wheel Type 85A Round Tread Polyurethane on Aluminum
Wheel Diameter 8"
Wheel Width 3"
Wheel Bearings Heavy Sealed Precision Ball Bearings
Capacity 2,500 pounds
Mounting Height 10-1/8"
Lead Time 1-2 weeks
