Product Description
Caster Information

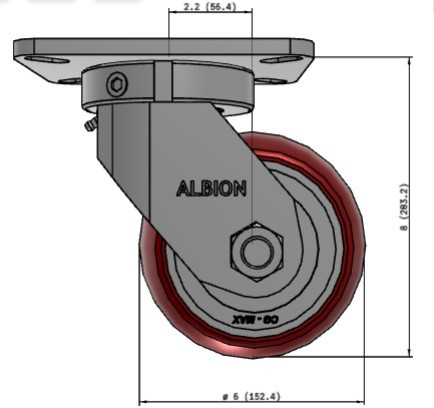

- 6" kingpinless swivel caster
- 6" x 3" CG MAX round tread polyurethane on aluminum wheel
- Large (6208RS) ball bearings in the wheel
- 2,000-pound capacity
- 8" mounting height
- 5-1/4" x 7-1/4" top plate

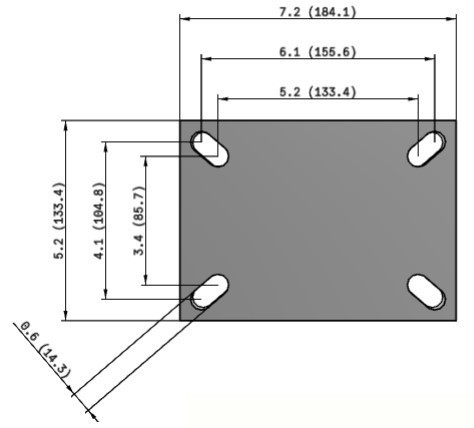

- 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" bolt hole pattern
- Swivel Lead: 2-7/32"
- 85 Shore A Durometer tread
- Crowned tread for improved ergonomic characteristics
- Lead time: 1-2 weeks
Wheel Information
The CG-MAX wheel is built to move more, with less effort. Designed for heavy loads, it delivers smooth, controlled performance over debris, reduces noise, and protects flooring. Confident grip and toughness make it ideal for both manual and towline applications.
At its core, advanced polyurethane technology absorbs weight over time, maintaining performance under continuous load. The result is a heavy-duty solution that's as versatile as it is dependable, built to handle demanding environments without compromise
Applications
- Automotive Manufacturing and Assembly Plants
- Aerospace & Defense Ground Support Equipment (GSE)
- Material Handling
- Robotics, AGVs, and Automated Carts
Product Videos
Custom Field
Caster Type Kingpinless Swivel
Wheel Type CG MAX Polyurethane on Aluminum
Wheel Diameter 6"
Wheel Width 3"
Capacity 2,000 pounds
Height 8"
Top Plate 5-1/4" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/4" to 4-1/8" x 6-1/8"
Mounting Bolt Size(not included) 1/2"
Wheel Durometer 85 Shore A
Temperature Range(F) -40 to +180
Lead Time 1-2 weeks
Suitable for Low-Speed Towing Yes
