Product Description

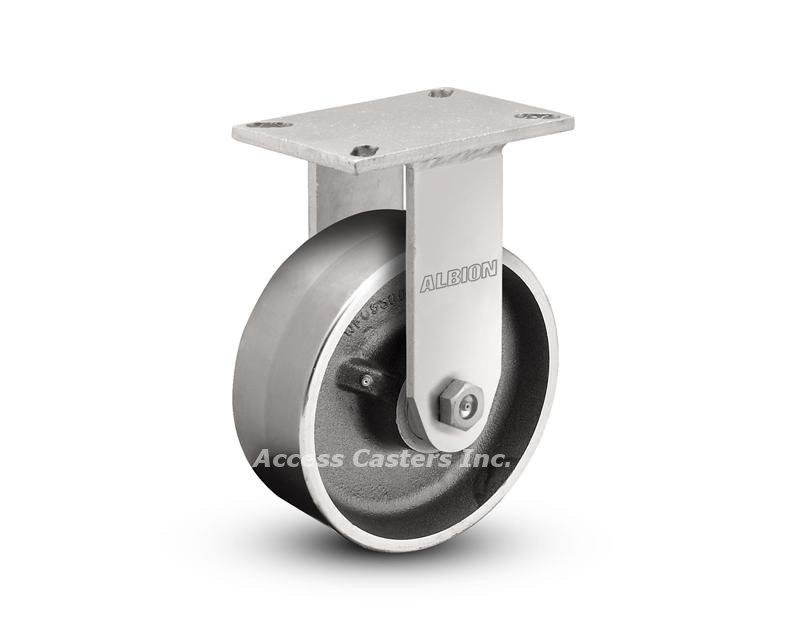

90FS06401R Albion 90 Series rigid caster
6" x 2-1/2" forged steel wheel with roller bearings
3,500 pound capacity
8" mounting height
5" x 7-1/4" top plate
3-3/8" x 5-1/2" slotted to 4-1/8" x 6-1/8" bolt hole pattern
Zinc plated
Wheel hardness: Rockwell 80 B
Normal lead time is 1 week to ship
90 Series is made from AISI 1045 drop forged steel and is highly recommended for rugged heavy duty applications. The deep-grooved load raceway provides better load distribution and the 3/8” steel ball bearing thrust raceway offers increased capacity. Zerk fitting in hollow axle gives easy maintenance access.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Rigid
Wheel Diameter 6"
Tread Width 2-1/2"
Brake No
Mounting Type Top Plate
Mounting Size 5" x 7-1/4"
Bolt Hole Pattern 3-3/8" x 5-1/2" to 4-1/8" x 6-1/8"
Wheel Material Forged Steel
Overall Height 8"
Load Capacity 3,500 lbs
Finish Zinc
Wheel Bearing Roller Bearing
