S-83-DB Hamilton Forgemaster caster
S-83-DB Hamilton Forgemaster casterMost or all components made in the USA

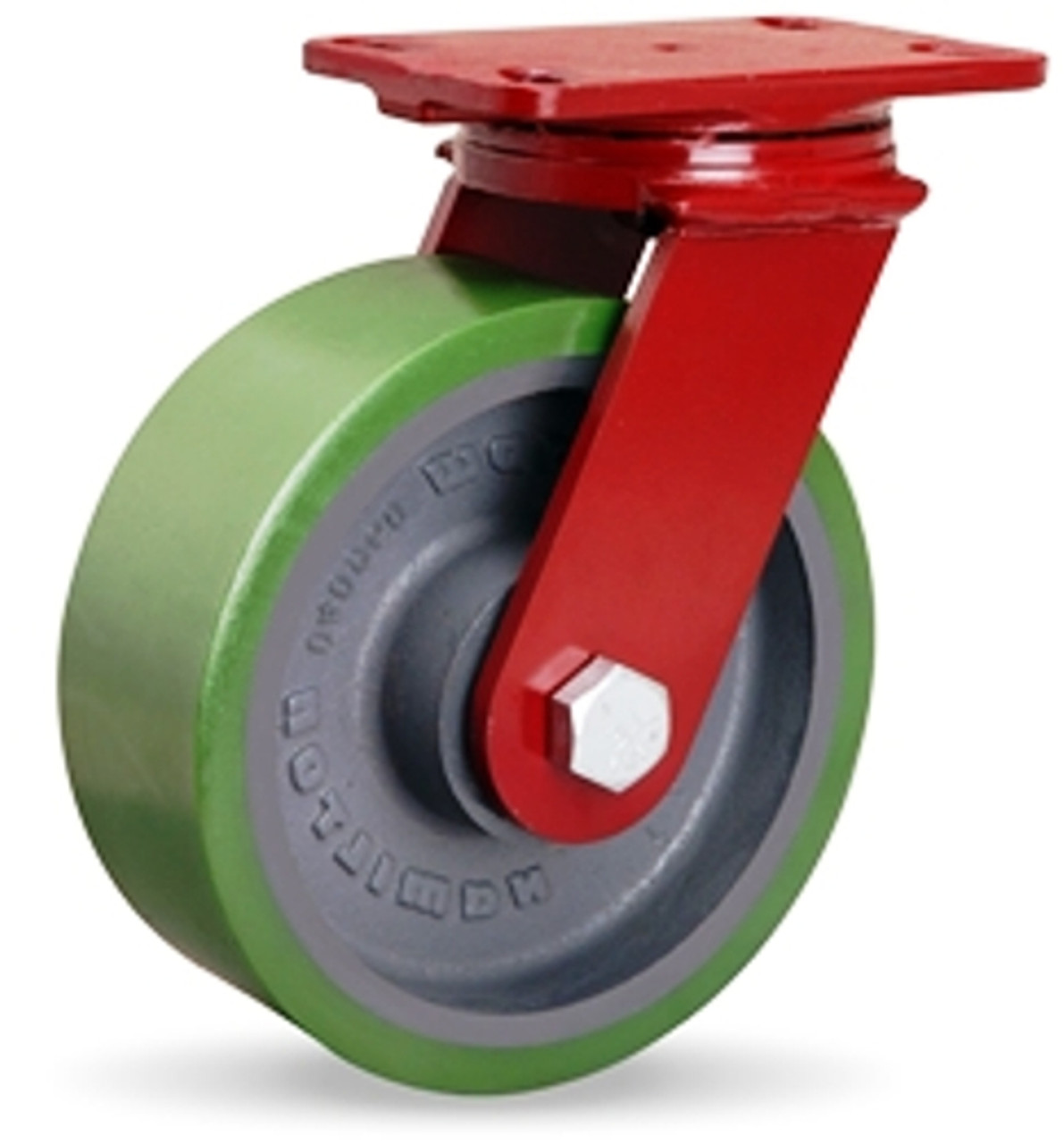

S-FM-83DB Hamilton ForgeMaster 8 Inch Swivel Caster

8" x 3" polyurethane wheel, 2,200 pound capacity
Item Number:
Your Price:

Product Description

Hamilton's ForgeMaster Casters were designed to match popular industry mounting plate, bolt hole and overall height specifications. However the precision tapered thrust bearing guaranteed-for-life integrally forged kingpin design makes it superior to the double ball raceways in its class.


  • Axle - 3/4" diameter hex head with lock nut
  • Lubrication Fittings - Ball-check type in swivel assembly and wheel hub
  • Finish - Hamilton red enamel
  • Capacity - 2,200 pounds
  • Mounting Height - 10-1/4"
  • Wheel Type - 8" x 3" 95 Shore A polurethane on cast iron with ball bearings
  • Top Plate - 4-1/2" x 6-1/2"
  • Bolt Holes - 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/2"
