Product Description

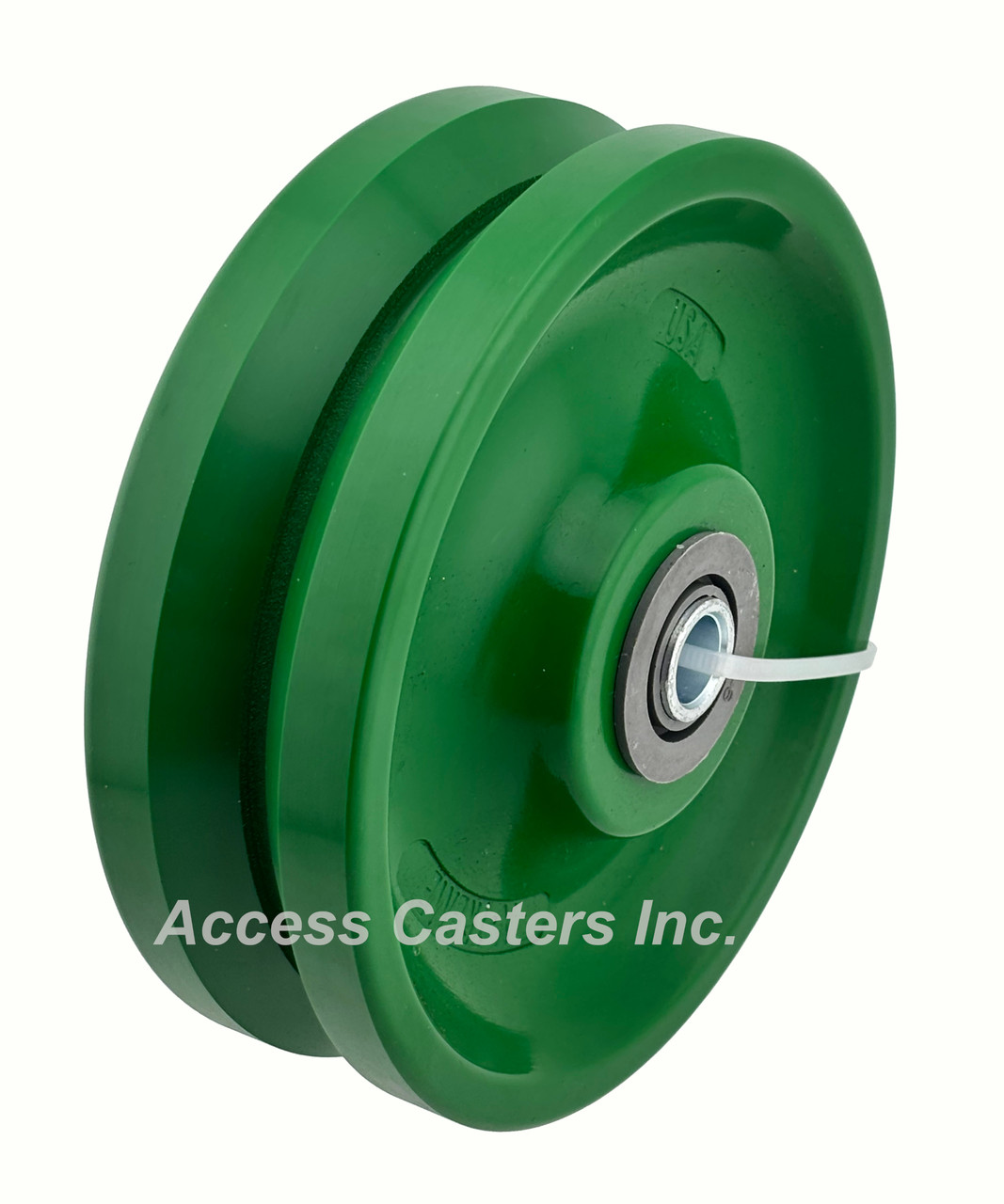

- 6" x 2" polyurethane v-groove wheel
- 3/4" ID roller bearings with 1/2" ID spanner bushing
- 300-pound capacity
- 2-7/16" hub length
- Hardness: 60 Shore D
- Temperature range: -40°F to 180°F
- Color: green
- V-groove: 7/8" wide x 7/16" deep
The wheel face and v-groove are machined from heavy-duty polyurethane. A relief groove at the base of the "V" tends to equalize the load to each face of the angle track when in operation. The wheel face and bore are machined for concentricity for proper tracking. These wheels can be used not only on track but also on flat surfaces.
Made in the USA.
The typical lead time for this item is 1 to 2 weeks.
Product Videos
Custom Field
Caster Type Wheel
Wheel Diameter 6"
Tread Width 2"
Hub Length 2-7/16"
Bore ID 1/2"
Wheel Material Polyurethane
Load Capacity 300 lbs
Wheel Bearing Roller Bearing
