Product Description

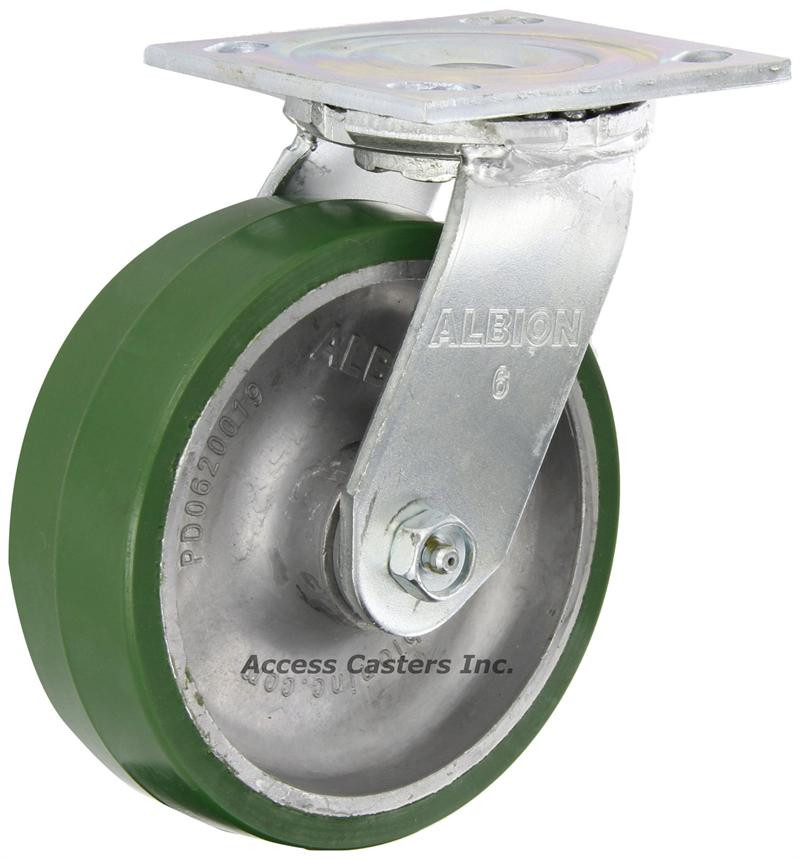

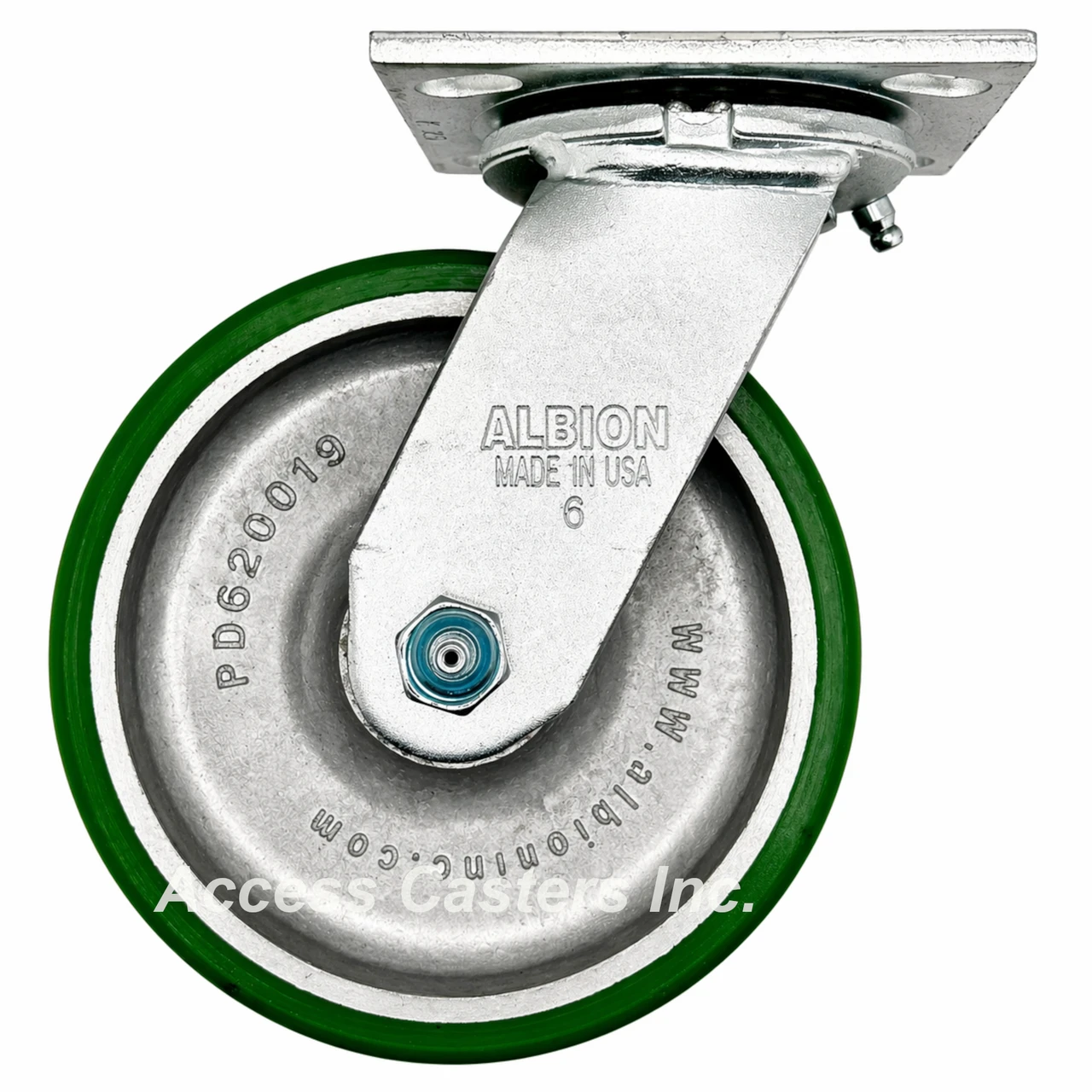

- Albion 16 Series Casters with Polyurethane on Aluminum Wheels
- Roller Bearings in wheels
- 4" x 4-1/2" top plates
- 3" x 3" slotted to 2-5/8" x 3-5/8" bolt hole pattern
- 1,230-pound capacity
- 7-1/4" mounting height
- RoHS-compliant zinc plate finish
- In stock for prompt shipment
- Tread Hardness: 60 Shore D
- Temperature Range(F): -40 to +180
Wheel Description
Composed of a polyurethane elastomer, open-cast on clean, close-tolerance cores. Polyurethane tread is chemically bonded to an aluminum core. High-capacity polyurethane protects floors, is non-marking, and delivers quieter operation than standard metal wheels.
CAD DRAWINGS
Product Videos
Custom Field
Caster Type Swivel
Wheel Diameter 6"
Tread Width 2"
Brake No
Mounting Type Top Plate
Mounting Size 4" x 4-1/2"
Bolt Hole Pattern 3" x 3" to 2-5/8" x 3-5/8"
Wheel Material Polyurethane
Overall Height 7-1/4"
Load Capacity 1,230 lbs
Finish Zinc
Wheel Bearing Roller Bearing
Manufacturer Albion
