FFTR-3.00 Three Inch Double Flanged Track Roller with stud mount

3" x .88" face, 1-1/4" x 2-1/2" stud, chrome steel
Item Number:
Your Price:

Product Description

Chrome steel double flanged stud type track roller

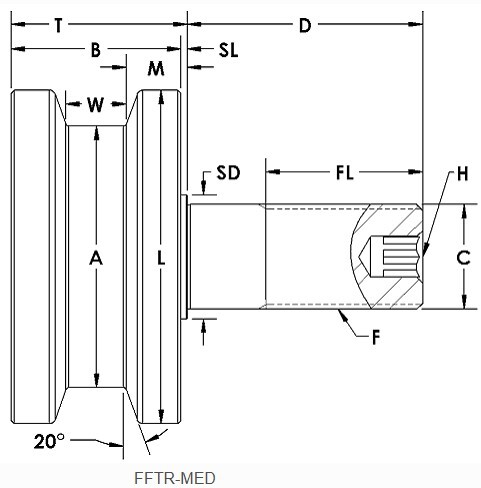

Face diameter:  3.00" (A)
Face Width:  0.88"  (W)
Roller width:  1.94" (B)
Flange dia.:  3.94"
Flange width:  0.59"
Stud dia.:  1.25"  (C)
Stud length:  2.50" (D)
Thread size:  1-1/4 - 12 (F)
Thread length:  1.75" (FL)
Hex size:  1/2" (H)

Basic radial dynamic load rating:  14,300 lbs
Basic radial static load rating:  20,000 lbs
Thrust dynamic load rating:  5,790 lbs
Thrust static load rating:  12,000 lbs
Stud capacity:  10,800 lbs
Max clamping torque:  1,500 in-lbs
Seal type:  Rubber dual lip
Bearing Type:  Tapered roller bearings
Unit weight:  5.46 lbs
