Product Description

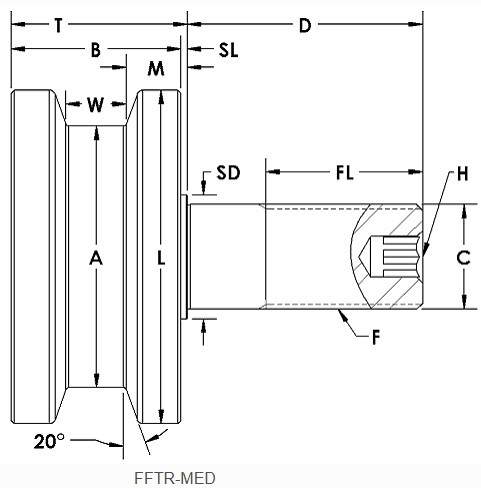

Chrome steel double flanged stud type track roller
Face diameter: 1.50" (A)
Face Width: 0.57" (W)
Roller width: 1.13" (B)
Flange dia.: 2.19"
Flange width: 0.34"
Stud dia.: 0.625" (C)
Stud length: 1.50" (D)
Thread size: 5/8"-18 (F)
Thread length: (0.75" (FL)
Hex size: 5/16" (H)
Basic radial dynamic load rating: 2,660 lbf.
Basic radial static load rating: 1,400 lbs.
Thrust dynamic load rating: 1,101
Thrust static load rating: 348 lbs.
Stud capacity: 1,210 lbs.
Retaining ring capacity: 550 lbs.
Max clamping torque: 350 in-lb.
Seal type: Rubber lip
Bearing Type: SKF Deep groove ball bearings
Unit weight: 0.81 lbs.
Double Flanged Track Rollers provide dual direction guidance along the track in applications where side loads are expected. Like most locational units, Double Flanged rollers are used in tandem with plain rollers to prevent overload from misalignment.
**2 PIECE MINIMUM ORDER.**
