FTR-3.00 Three inch diameter stud mounted flanged track roller

3" x 1.94" mounted on 1-1/4" diameter stud, chrome steel
Item Number:
FTR-3.00
Your Price:
$101.14

Product Description

3" face diameter x 1.94" face width (A&B)
Flange diameter:  3.94" (L)
Flange width:  0.59" (M)
Stud diameter:  1.25" C)
Stud length:  2.50" (D)
Hex Size:  1/2" (H)

Thread size: 1-1/4"-12 x 1.75" long (FL)
Basic radial dynamic load rating:  14,300 lbs
Basic radial static load rating:  20,000 lbs
Thrust dyanamic load rating:  5,790 lbs
Thrust static load rating:  12,000 lbs
Stud capacity:  10,800 lbs
Max clamping torque:  1,500 in-lbs
Seal type:  Rubber dual lip
Bearing Type: Tapered roller bearings
Unit weight:  4.72 lbs
Chrome steel construction

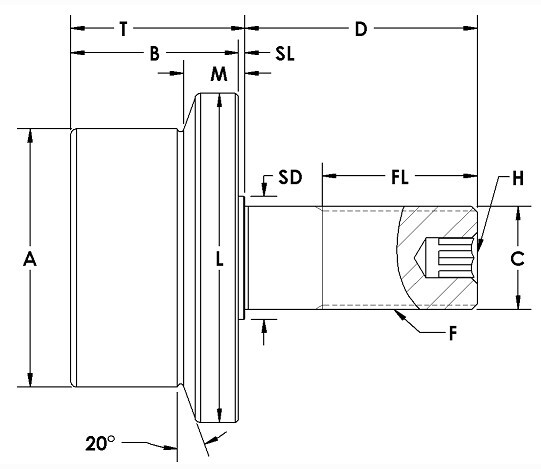

FTR-DRAW
