Blickle LRA Series
LRA Series
Light duty institutional bolt hole swivel casters with capacities up to 220 lbs. Swivel casters for 3/8" mounting bolts. RoHs complaint
LRA castor bracket series features pressed steel parts, double ball bearing in the swivel head, with strong
central kingpin. The special Blickle dynamic riveting process of the swivel head results in minimal swivel head
play and smooth rolling characteristics with an increased service life achieved by the work
hardening of the ball race grooves. Maintenance free lubricated with long-life grease.
The LRA rig series with bolt hole fitting is available with the following wheels:
 |
Tread: High-quality thermoplastic
rubber-elastomer (TPE),containing traces
of oil, 85° shore A, gray, non-marking
chemically boned.
Wheel center: Impact-resistant
polypropylene, silver gray.
Bearing types: plain bore or
ball bearing with synthetic thread guard.
|
 |
Wheel: impact-resistant nylon, 70° shore D,black.
Bearing type: Plain bore.
|
 |
Tread: High-quality thermoplastic
polyurethane (TPU), 94° shore A,
dark gray, non-marking,non-staining,
chemically bonded.
Wheel Center: impact-resistant nylon, silver-gray.
Bearing Type: Ball bearing with synthetic thread guard.
|
 |
Tread: High-quality polyurethane-elastomer
Blickle Extrathane, 92° shore A, light brown
non-marking, non-staining. Cast thread.
Bearing type: Ball Bearing. |
For mor information view our catalog page.
List Price: $11.96
Your Price: $11.21
You Save: $0.75 (6 %)
2x3/4 PATH Wheel Swivel Caster w/brake Ball Bearing 165 lbs cap with 3/8 Mounting hole
|
List Price: $9.64
Your Price: $9.03
You Save: $0.61 (6 %)
2 x 3/4 PATH Wheel Swivel Caster Ball Bearing 165 lbs capacity with 3/8 Mounting hole
|
List Price: $14.88
Your Price: $13.95
You Save: $0.93 (6 %)

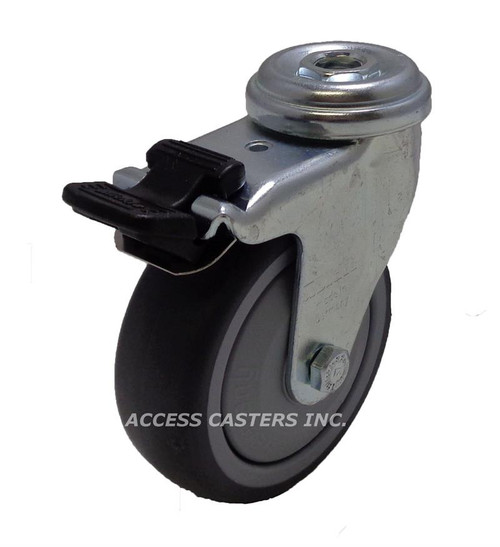

3x 1 PATH Wheel Swivel Caster w/brake Ball Bearing 165 lbs cap with 3/8 Mounting hole
|
List Price: $12.29
Your Price: $11.52
You Save: $0.77 (6 %)

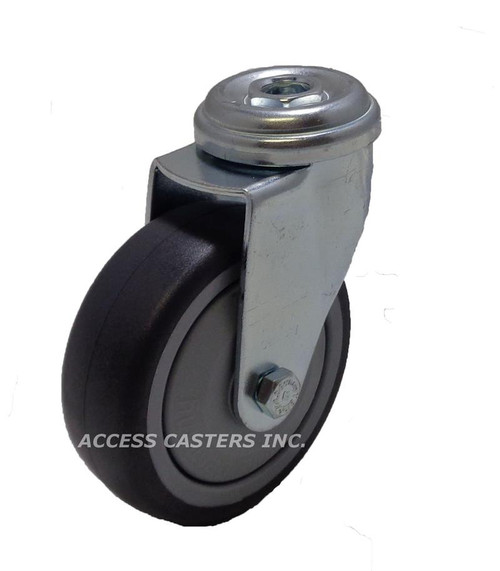

3 x 1 PATH Wheel Swivel Caster Ball Bearing 165 lbs capacity with 3/8 Mounting hole
|
List Price: $4.81
Your Price: $4.50
You Save: $0.31 (6 %)
2 x 3/4 POA Wheel Swivel Caster Plain Bore 165 lbs capacity with 3/8 Mounting hole
|
List Price: $6.61
Your Price: $6.18
You Save: $0.43 (7 %)
2x3/4 POA Wheel Swivel Caster w/brake Plain Bore 165 lbs cap with 3/8 Mounting hole
|
List Price: $5.55
Your Price: $5.19
You Save: $0.36 (6 %)
3 x 1 POA Wheel Swivel Caster Plain Bore, 165 lbs capacity with 3/8 mounting hole
|
List Price: $7.64
Your Price: $7.15
You Save: $0.49 (6 %)
3 x 1 POA Wheel Swivel Caster w/brake Plain Bore 165 lbs cap with 3/8 mounting hole
|
List Price: $6.92
Your Price: $6.48
You Save: $0.44 (6 %)
4 x 1 TPE Wheel Swivel Caster Plain bore 155 lbs capacity with 3/8 Mounting hole
|
List Price: $8.73
Your Price: $8.17
You Save: $0.56 (6 %)
4x1 TPE Wheel Swivel Caster w/brake Plain Bore 155 lbs capacity with 3/8 Mounting hole
|
List Price: $4.77
Your Price: $4.45
You Save: $0.32 (7 %)

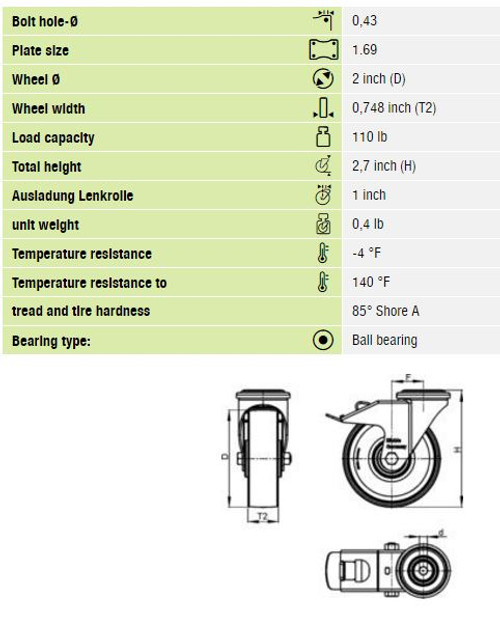

2 x 3/4 TPE Wheel Swivel Caster Plain bore 110 lbs capacity with 3/8 Mounting hole
|
List Price: $6.56
Your Price: $6.13
You Save: $0.43 (7 %)
2 x 3/4 TPE Wheel Swivel Caster with brake Plain Bore, 110 lbs cap with 3/8" mounting hole
|
List Price: $7.95
Your Price: $7.44
You Save: $0.51 (6 %)
2x3/4 TPE Wheel Swivel Caster w/brake Ball Bearing 110 lbs cap with 3/8 Mounting hole
|
List Price: $5.88
Your Price: $5.50
You Save: $0.38 (6 %)
2 x 3/4 TPE Wheel Swivel Caster Ball Bearing 110 lbs capacity 3/8 iwth Mounting hole
|
List Price: $6.24
Your Price: $5.84
You Save: $0.40 (6 %)
3 x 1 TPE Wheel Swivel Caster Plain bore 165 lbs capacity with 3/8 Mounting hole
|
List Price: $7.99
Your Price: $7.49
You Save: $0.50 (6 %)
3x1 TPE Wheel Swivel Caster w/brake Plain Bore 165 lbs capacity with 3/8 Mounting hole
|
List Price: $10.38
Your Price: $9.73
You Save: $0.65 (6 %)
3x1 TPE Wheel Swivel Caster w/brake Ball Bearing 165 lbs capacity with 3/8 Mounting hole
|
List Price: $8.51
Your Price: $7.98
You Save: $0.53 (6 %)
3 x 1 TPE Wheel Swivel Caster Ball Bearing 165 lbs capacity with 3/8 Mounting hole
|
List Price: $17.37
Your Price: $16.25
You Save: $1.12 (6 %)
1 3/8 x 1 1/16 VSTH Wheel Swivel Caster Ball Bearing 220 lbs capacity with 3/8 Mounting Hole
|
List Price: $124.40
Your Price: $116.53
You Save: $7.87 (6 %)
6 x 1-3/4 POTH Wheel Swivel Stainless Steel Caster w/brake Ball Bearing 660 lbs cap with plate mount
| |
|
|
