Drawings and PDFs available upon request.
Please inquire about our American made products. We have product lines that have all or most of their components manufactured in the USA! Most of our products are RoHS Compliant please ask about the specific product you need.

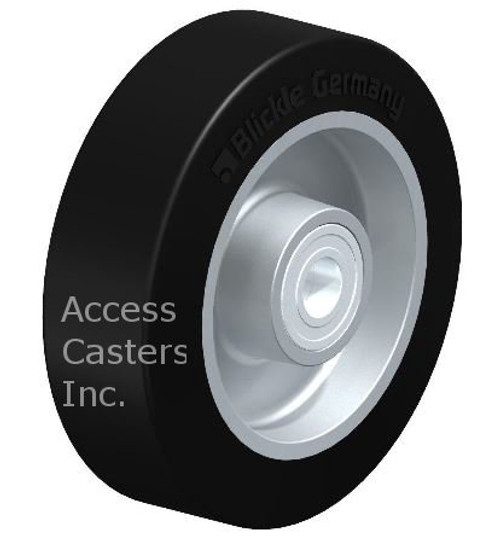

4 x 1 9/16 ALEV Wheel Ball Bearing 440 lbs capacity with 15MM ID 1 9/16 hub length

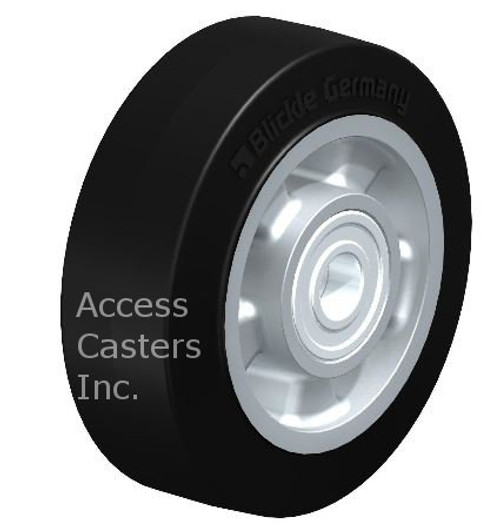

5 x 1 9/16 ALEV Wheel Ball Bearing 550 lbs capacity with 15MM ID 1 3/4 hub length
6 x 2 1/8 ALEV Wheel Ball Bearing 880 lbs capacity with 20MM ID 2 11/32 hub length
6 5/16 x 2 ALEV Wheel Ball Bearing 880 lbs capacity with 20MM ID 2 11/32 hub length

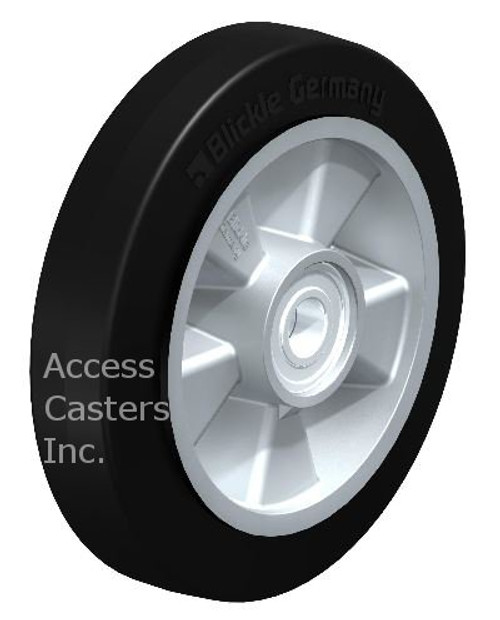

8 x 2 ALEV Wheel Ball Bearing 1100 lbs capacity with 20MM ID 2 11/32 hub length
8 x 2 ALEV Wheel Ball Bearing 1210 lbs capacity with 20MM ID 2 11/32 hub length
8 x 2 ALEV Wheel Ball Bearing 1210 lbs capacity with 25MM ID 2 11/32 hub length
4 x 1 1/2 POEV Wheel Ball Bearing 440 lbs capacity with 10MM ID 1 25/32 hub length
4 x 1 1/2 POEV Wheel Ball Bearing 440 lbs capacity with 8MM ID 1 25/32 hub length
5 x 1 9/16 POEV Wheel Ball Bearing 550 lbs capacity with 10MM ID 1 25/32 hub length
5 x 1 9/16 POEV Wheel Ball Bearing 550 lbs capacity with 8MM ID 1 25/32 hub length
6 5/16 x 2 POEV Wheel Ball Bearing 880 lbs capacity with 12MM ID 2 3/8 hub length
6 5/16 x 2 POEV Wheel Ball Bearing 880 lbs capacity with 20MM ID 2 11/32 hub length
8 x 2 POEV Wheel Ball Bearing 1100 lbs capacity with 12MM ID 2 3/8 hub length
8 x 2 POEV Wheel Ball Bearing 1100 lbs capacity with 20MM ID 2 11/32hub length
3 1/8 x 1 1/4 POEV Wheel Ball Bearing 310 lbs capacity with 8MM ID 1 13/32 hub length
3 1/8 x 1 9/16 POEV Wheel Ball Bearing 375 lbs capacity with 8MM ID 1 25/32 hub length
3 1/2 x 1 1/4 POEV Wheel Ball Bearing 350 lbs capacity with 10MM ID 1 25/32 hub length
5 x 2 SE Wheel Ball Bearing 705 lbs capacity with 20MM ID 2 11/32 hub length
6 5/16 x 2 SE Wheel Ball Bearing 990 lbs capacity with 20MM ID 2 11/32 hub length
8 x 2 SE Wheel Ball Bearing 1320 lbs capacity with 20MM ID 2 11/32 hub length
8 x 3 1/8 SE Wheel Ball Bearing 1870 lbs capacity with 25MM ID 3 17/32 hub length
10 x 3 1/8 SE Wheel Ball Bearing 2200lbs capacity with 25MM ID 3 17/32 hub length
