Hamilton MDD Maxi-Duty Dual Wheel Casters



Capacity Range: 5,000 – 16,600 lbs.

This dual-wheel series version of the Maxi-Duty Caster addresses the problem of how to restrict overall height while at the same time provide adequate carrying capacity on resilient tread wheels. Dual Wheel Casters also improve stability and swivel more easily than wider-face single wheels because differential action reduces the “scrubbing” effect of soft treads against the floors. The series touts its “precision” feature indicating that both the secondary thrust bearing and the main load bearing are precision-made. HPI™ Swivel Technology is a standard feature in this dual wheel series providing smoother swiveling and longer life.

For dual wheel casters in use with lighter duty applications, see EHD2 Series.

Quality Features & Specs

  • Swivel Construction: 5/8" thick drop forged steel mounting plate (rigid plate 1/2" thick); outer legs 3/8" x 5" precision laser cut steel continuously welded inside and outside to forged steel horn base (center leg 3/8"x 2")
  • Kingpin: 1 1/4" dia. integrally forged with mounting plate guaranteed for life, prevents bending or breaking; threaded for 1 1/4" slotted nut secured by roll pin for positive locking.
  • Main Load Bearing: HPI™ thrust bearing with outside diameter of 7 1/2"; raceways hardened to 58-62HRC and ground to surface finish 16 micro inches.
  • Secondary Load Bearing: 1 1/4" precision tapered thrust bearing counteracts radial thrust.
  • Product Finish: Powder Coated - Caster rigs are powder coated with Hamilton’s new Platinum Powder, a metallic HAA Polyester providing a premium look and excellent durability for both interior and exterior environments.
  • Axle: 1 1/4" diameter grade 5 hex head with slotted nut and cotter pin.
  • Lubrication Fittings: Ball-check type in swivel assembly and in wheel hubs with tapered or straight roller bearings.



Hamilton HPI™ Technology
The Maxi-Duty Dual Wheel Series features Hamilton’s Precision Integrated HPI™ Swivel Technology. The new technology outperforms conventional CNC-machined ball raceways, kingpinless, and unit load bearing swivel constructions.



**Click on pictures for more detailed product information.




Displaying products 1 - 30 of 52 results
Page 1 of 2 Page 12movenext
S-MDD-63NYB 6
S-MDD-63NYB 6" Hamilton Maxi-Duty Dual Nylast Wheel Swivel Caster
Your Price: $862.55
S-MDD-63NYB 6" Hamilton Maxi-Duty Dual Nylast Wheel Swivel Caster

6" x 3" Nylast Wheel, 10,800 pound capacity

R-MDD-63NYB 6
R-MDD-63NYB 6" Hamilton Maxi-Duty Dual Nylast Wheel Rigid Caster
Your Price: $656.69
R-MDD-63NYB 6" Hamilton Maxi-Duty Dual Nylast Wheel Rigid Caster

6" x 3" Nylast Wheel, 10,800 pound capacity

 S-MDD-83DT70 8
S-MDD-83DT70 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Swivel Caster
Your Price: $718.29
S-MDD-83DT70 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Swivel Caster

8" x 3" Duralast XC Polyurethane on Cast Iron Wheel, 6,500 pound capacity

R-MDD-83DT70 8
R-MDD-83DT70 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $512.41
R-MDD-83DT70 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster

8" x 3" Duralast XC Polyurethane on Cast Iron Wheel, 6,500 pound capacity

S-MDD-83NYB 8
S-MDD-83NYB 8" Hamilton Maxi-Duty Dual Nylast Wheel Swivel Caster
Your Price: $981.26
S-MDD-83NYB 8" Hamilton Maxi-Duty Dual Nylast Wheel Swivel Caster

8" x 3" Nylast Wheel, 14,400 pound capacity

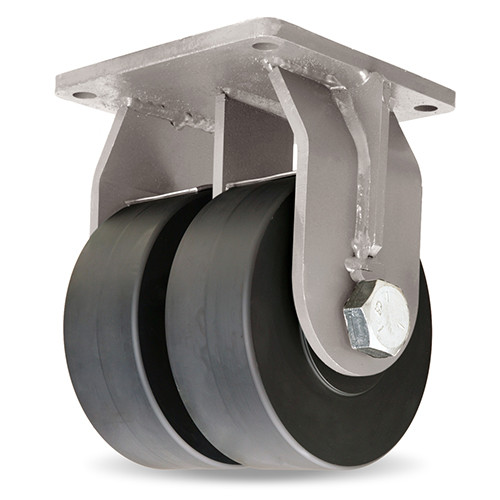

R-MDD-83NYB 8
R-MDD-83NYB 8" Hamilton Maxi-Duty Dual Nylast Wheel Rigid Caster
Your Price: $775.40
R-MDD-83NYB 8" Hamilton Maxi-Duty Dual Nylast Wheel Rigid Caster

8" x 3" Nylast Wheel, 14,400 pound capacity

S-MDD-83STRT 8
S-MDD-83STRT 8" Hamilton Maxi-Duty Dual Super Ultralast Polyurethane on Forged Steel Wheel Swivel Caster
Your Price: $1,223.20
S-MDD-83STRT 8" Hamilton Maxi-Duty Dual Super Ultralast Polyurethane on Forged Steel Wheel Swivel Caster

8" x 3" Super Ultralast Polyurethane on Forged Steel Wheel, 7,000 pound capacity

R-MDD-83STRT 8
R-MDD-83STRT 8" Hamilton Maxi-Duty Dual Super Ultralast Polyurethane on Forged Steel Wheel Rigid Caster
Your Price: $1,017.33
R-MDD-83STRT 8" Hamilton Maxi-Duty Dual Super Ultralast Polyurethane on Forged Steel Wheel Rigid Caster

8" x 3" Super Ultralast Polyurethane on Forged Steel Wheel, 7,000 pound capacity

S-MDD-83SYT
S-MDD-83SYT 8" Hamilton Maxi-Duty Dual Poly on Cast Wheel Swivel Caster
Your Price: $1,075.76
S-MDD-83SYT  8" Hamilton Maxi-Duty Dual Poly on Cast Wheel Swivel Caster

8" x 3" Superlast Polyurethane Wheel, 7,000 pound capacity

R-MDD-83SYT 8
R-MDD-83SYT 8" Hamilton Maxi-Duty Dual Poly on Steel Wheel Rigid Caster
List Price: $785.30
Your Price: $689.14
You Save: $96.16 (12 %)
R-MDD-83SYT  8" Hamilton Maxi-Duty Dual Poly on Steel Wheel Rigid Caster

8" x 3" Superlast Polyurethane Wheel, 7,000 pound capacity

S-MDD-83SYT70
S-MDD-83SYT70 8" Hamilton Maxi-Duty Dual Poly on Cast Wheel Swivel Caster
Your Price: $1,173.60
S-MDD-83SYT70  8" Hamilton Maxi-Duty Dual Poly on Cast Wheel Swivel Caster

8" x 3" Superlast XC Polyurethane Wheel, 8,800 pound capacity

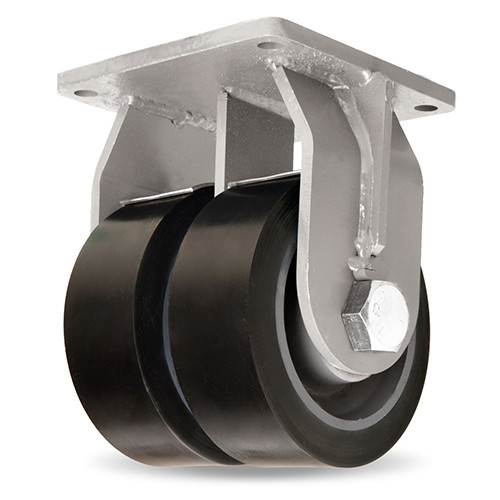

R-MDD-83SYT70
R-MDD-83SYT70 8" Hamilton Maxi-Duty Dual Poly on Cast Wheel Rigid Caster
Your Price: $908.46
R-MDD-83SYT70  8" Hamilton Maxi-Duty Dual Poly on Cast Wheel Rigid Caster

8" x 3" Superlast XC Polyurethane Wheel, 8,800 pound capacity

S-MDD-83TRT 8
S-MDD-83TRT 8" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Swivel Caster
Your Price: $907.64
S-MDD-83TRT 8" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Swivel Caster

8" x 3" Ultralast Premium Polyurethane on Forged Steel Wheel, 6,000 pound capacity

R-MDD-83TRT 8
R-MDD-83TRT 8" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Rigid Caster
Your Price: $701.76
R-MDD-83TRT 8" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Rigid Caster

8" x 3" Ultralast Premium Polyurethane on Forged Steel Wheel, 6,000 pound capacity

S-MDD-83DH 8
S-MDD-83DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Swivel Caster
Your Price: $586.06
S-MDD-83DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Swivel Caster

8" x 3" Polyurethane on Cast Iron Wheel, 5,000 pound capacity

R-MDD-83DH 8
R-MDD-83DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $387.69
R-MDD-83DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Rigid Caster

8" x 3" Polyurethane on Cast Iron Wheel, 5,000 pound capacity

S-MDD-83DT 8
S-MDD-83DT 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Swivel Caster
Your Price: $674.71
S-MDD-83DT 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Swivel Caster

8" x 3" Duralast Polyurethane on Cast Iron Wheel, 5,000 pound capacity

R-MDD-83DT 8
R-MDD-83DT 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $512.41
R-MDD-83DT 8" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster

8" x 3" Duralast Polyurethane on Cast Iron Wheel, 5,000 pound capacity

S-MDD-13DH 8
S-MDD-13DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Swivel Caster
Your Price: $626.64
S-MDD-13DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Swivel Caster

10" x 3" Polyurethane on Cast Iron Wheel, 6,000 pound capacity

R-MDD-13DH 8
R-MDD-13DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $432.79
R-MDD-13DH 8" Hamilton Maxi-Duty Dual Polyurethane on Cast Iron Wheel Rigid Caster

10" x 3" Polyurethane on Cast Iron Wheel, 6,000 pound capacity

S-MDD-13DT 10
S-MDD-13DT 10" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Swivel Caster
Your Price: $736.32
S-MDD-13DT 10" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Swivel Caster

10" x 3" Duralast Polyurethane on Cast Iron Wheel, 6,000 pound capacity

R-MDD-13DT 10
R-MDD-13DT 10" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $536.46
R-MDD-13DT 10" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster

10" x 3" Duralast Polyurethane on Cast Iron Wheel, 6,000 pound capacity

R-MDD-13DT70 10
R-MDD-13DT70 10" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $587.56
R-MDD-13DT70 10" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster

10" x 3" Duralast XC Polyurethane on Cast Iron Wheel, 7,800 pound capacity

S-MDD-13DT70 10
S-MDD-13DT70 12" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster
Your Price: $787.41
S-MDD-13DT70 12" Hamilton Maxi-Duty Dual Duralast XC Polyurethane on Cast Iron Wheel Rigid Caster

10" x 3" Duralast XC Polyurethane on Cast Iron Wheel, 7,800 pound capacity

S-MDD-13STRT 10
S-MDD-13STRT 10" Hamilton Maxi-Duty Dual Super Ultralast Polyurethane on Forged Steel Wheel Swivel Caster
Your Price: $1,624.44
S-MDD-13STRT 10" Hamilton Maxi-Duty Dual Super Ultralast Polyurethane on Forged Steel Wheel Swivel Caster

10" x 4" Super Ultralast Polyurethane on Forged Steel Wheel, 10,000 pound capacity

R-MDD-13NYB 10
R-MDD-13NYB 10" Hamilton Maxi-Duty Dual Nylast Wheel Rigid Caster
Your Price: $856.55
R-MDD-13NYB 10" Hamilton Maxi-Duty Dual Nylast Wheel Rigid Caster

8" x 3" Nylast Wheel, 14,400 pound capacity

S-MDD-13NYB 10
S-MDD-13NYB 10" Hamilton Maxi-Duty Dual Nylast Wheel Swivel Caster
Your Price: $981.26
S-MDD-13NYB 10" Hamilton Maxi-Duty Dual Nylast Wheel Swivel Caster

8" x 3" Nylast Wheel, 14,400 pound capacity

S-MDD-13TRT 10
S-MDD-13TRT 10" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Swivel Caster
Your Price: $1,041.37
S-MDD-13TRT 10" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Swivel Caster

10" x 3" Ultralast Premium Polyurethane on Forged Steel Wheel, 7,200 pound capacity

R-MDD-13TRT 10
R-MDD-13TRT 10" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Rigid Caster
Your Price: $840.00
R-MDD-13TRT 10" Hamilton Maxi-Duty Dual Ultralast Premium Polyurethane on Forged Steel Wheel Rigid Caster

10" x 3" Ultralast Premium Polyurethane on Forged Steel Wheel, 7,200 pound capacity

S-MDD-104SYT
S-MDD-104SYT 10" Hamilton Maxi-Duty Dual Poly on Steel Wheel Swivel Caster
Your Price: $1,340.87
S-MDD-104SYT  10" Hamilton Maxi-Duty Dual Poly on Steel Wheel Swivel Caster

10" x 4" Superlast Polyurethane Wheel, 10,000 pound capacity
